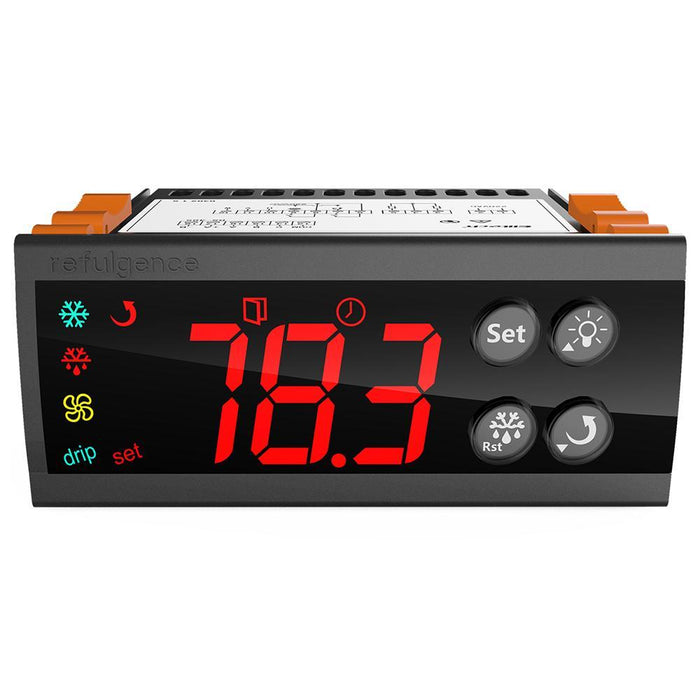

Elitech ECS-2280neo Temperature Controller

Elitech UKSKU: ECS-2280neo

In stock


Elitech ECS-2280neo temperature controller is a small, high-precision, easy-to-operate temperature controller thermostat, suitable for temperature control of refrigeration, defrosting and fan output. The refrigeration relay is a 20A/240V output, which can directly drive a 2HP compressor in a single phase. With temperature measurement, temperature display, temperature control, temperature correction, sensor fault alarm functions. It has a high display resolution of temperature (0.1).

It has the function of Fahrenheit and Celsius conversion. And it has a Copycard function, which is convenient to set the same parameter for a large number of temperature controllers. If you are an equipment manufacture or after-sale service company, this will save time.

Compare to the ECS-180neo temperature controller, ECS-2280neo adds 485 communication interface, the communication protocol adopts MODBUS. ECS-2280neo can be connected to the network as a control terminal device and has the function of remote monitoring and setting.

Elitech ECS-2280neo temperature controller can be used for the medicine cabinet, kitchen cabinet, supermarket split cabinet, air curtain cabinet, island cabinet, convenience cabinet, wine cabinet, etc,

Two-way sensor input: temperature probe sensor, defrost probe sensor.
Three-way control outputs: refrigeration, defrosting and fan equipment.

Elitech ECS-2280neo Function

Model Control Output Signal Input Other
Refrigeration (20A)  Defrosting (10A) Fan (10A) Temperature Sensor Defrost Sensor Copy card 485 Interface



Model ECS-180neo
Operating Voltage 220VAC±10%; 50/60Hz
Overall Power Consumption <3W
Temperature Measurement Range -50℃~90℃
Temperature Control Range -50℃~85℃
Temperature Measurement Accuracy ±1℃(-40℃~50℃ ), ±2℃(51℃~70℃), Others±3℃
Display Resolution 0.1℃
Product Size 78.5×34.5×82(mm)
Mounting Dimension 71×29 (mm)
Rated Current of Output Relay (Refrigeration) 20A/240VAC
Rated Current of Output Relay (Defrosting) 10A/240VAC
Rated Current of Output Relay (Fan) 10A/240VAC


  • Pass EMC test, industrial level four test, stable and reliable
  • Fahrenheit and Celsius conversion function
  • Copy card function for quick parameter setting
  • 485 interface for remote control


    • Medicine Cabinet
    • Kitchen Cabinet
    • Supermarket Split Cabinet
    • Air Curtain Cabinet
    • Island Cabinet
    • Convenience Cabinet
    • Wine Cabinet

    Elitech Three-Way Output Temperature Controller Comparison

    Elitech Three-Way Output Temperature Controller Comparison - Elitech UK
