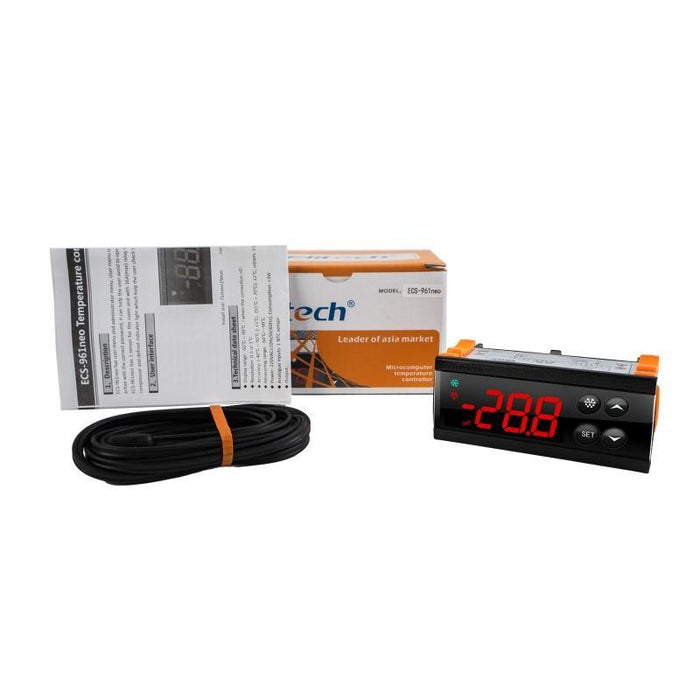

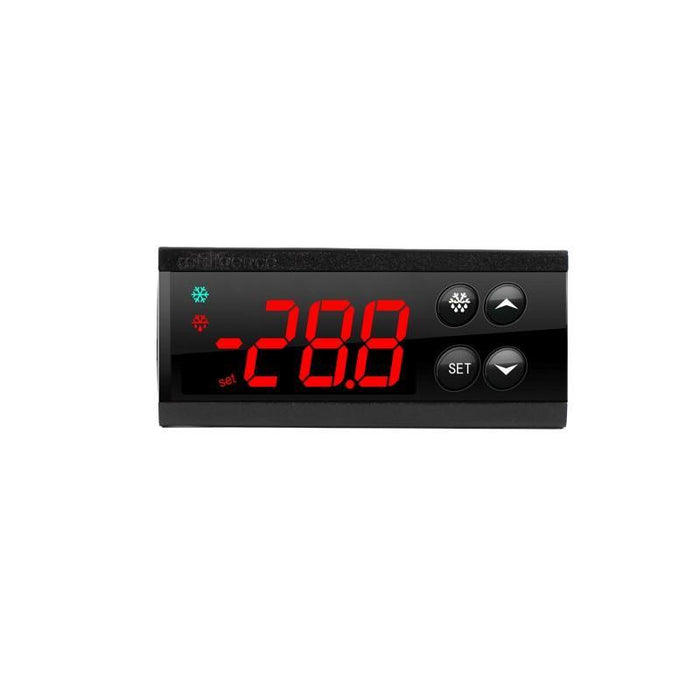

Elitech ECS-961neo Temperature Controller

2 sold in last 8 hours
ECS-961neo
£18.99
Elitech ECS-961neo (ECS961neo) temperature controller is a small, high-precision, easy-to-operate temperature controller, suitable for temperature control with refrigeration/ heating output. With temperature measurement, temperature display, temperature control, temperature correction, sensor fault alarm, shutdown defrost and other functions. The parameter setting of ECS-961 is divided into the user menu and administrator...
£18.99
customers are viewing this product

Elitech ECS-961neo (ECS961neo) temperature controller is a small, high-precision, easy-to-operate temperature controller, suitable for temperature control with refrigeration/ heating output. With temperature measurement, temperature display, temperature control, temperature correction, sensor fault alarm, shutdown defrost and other functions.

The parameter setting of ECS-961 is divided into the user menu and administrator menu. If you are an equipment company, you can set up the administrator menu parameters. The end-user only sets the user parameter menu, which is convenient for users to operate. The administrator menu has a password protection function to prevent users from misusing settings.

It has a Copycard function, which is convenient to set the same parameter for a large number of temperature controllers. If you are equipment manufacture or after-sale service company, this will save time.

Elitech ECS-961neo temperature controller is suitable for cold storage, freezer, chiller, operating console refrigeration equipment and heating equipment.

One-way sensor input: temperature probe sensor.
One-way control output: refrigeration/heating equipment.

Elitech ECS-961neo Function

Model Control Output Signal Input Other
Refrigeration/ Heating (17A) Temperature Sensor Copy Card Shutdown Defrosting
ECS-961neo



Parameter

Model ECS-961neo
Operating Voltage 220VAC±10%; 50/60Hz
Overall Power Consumption <3W
Temperature Measurement Range -50℃~99℃
Temperature Control Range -50℃~99℃
Temperature Measurement Accuracy ±1℃(-40℃~50℃ ), ±2℃(51℃~70℃), Others±3℃
Display Resolution 0.1℃/1℃
Product Size 78.5×34.5×82(mm)
Mounting Dimension 71×29 (mm)
Rated Current of Output Relay (Refrigeration/ Heating) 17A/220VAC



Feature

  • Refrigeration relay output: 17A/240V
  • Copy card function for quick parameter setting
  • Cooling or heating output.

Application

  • Cold storage
  • Freezer
  • Chiller
  • Commercial refrigerator
  • Heating equipment

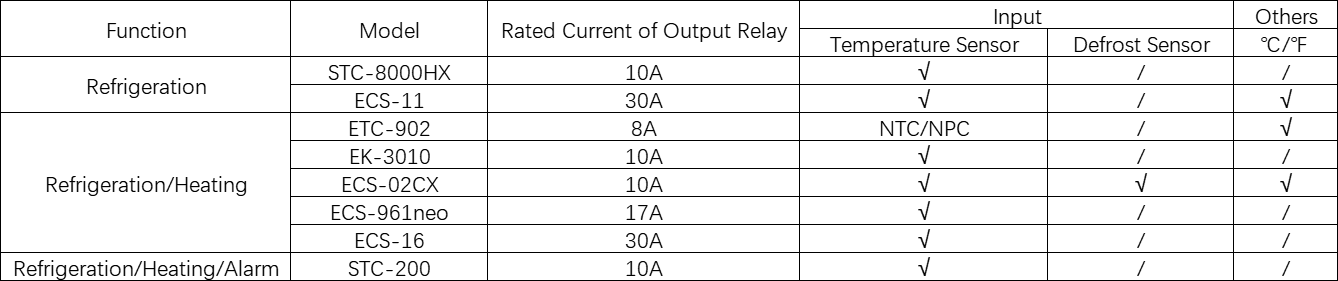

Elitech One-Way Output Temperature Controller Comparison

Function Model Rated Current of Output Relay Input Others
Temperature Sensor Defrost Sensor Bigger Display Screen
Refrigeration STC-8000H 10A / /
STC-8000HX 10A /
Refrigeration/Heating EK-3010 10A /
ECS-02CX 10A
ECS-961neo 17A /
ECS-16 30A / /
Refrigeration/Heating/Alarm STC-200 10A / /
