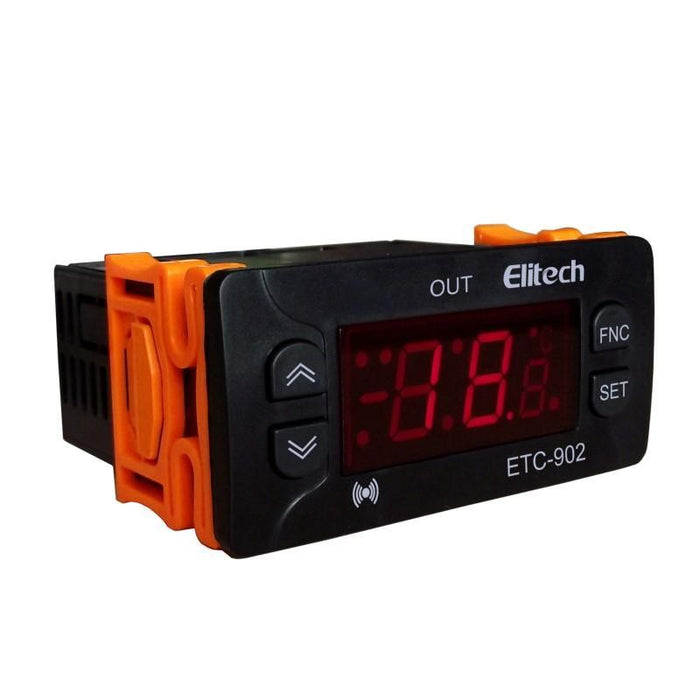

Elitech ETC-902 Temperature Controller with Cooling or Heating Control Mode, NTC/PTC Temperature Sensor Optional, Copy Card Function, ℃/℉,
Elitech ETC-902 temperature controller is used for single cooling or single heating application scenarios. It has two temperature probes to choose from, NTC/PTC. With over-temperature alarm and sensor error alarm, and supports Fahrenheit and Celsius conversion. Compared with other temperature controllers, its accuracy can be selected by yourself, 0.1℃/1℃.
It has a copy card function, which is convenient to set the same parameter for a large number of temperature controllers. If you are an equipment manufacture or after-sale service company, this will save time.
|Model||Control Output||Signal Input||Others|
|Cooling / Heating||Temperature Sensor||(℃/℉)||Copy Card|
|Operating Voltage||230VAC±10%; 50/60Hz|
|Temperature Control Range||-50℃-99℃|
|Temperature Accuracy||NTC: ±0.5℃ (-30℃-50℃), Others ±1℃ PTC: ±2℃ (-30℃-50℃), Others ±3℃|
|Temperature Display Resolution||0.1℃/ 1℃|
|Product Dimension||77*34.5*58 (mm)|
|Mounting Dimension||71×29 (mm)|
|Sensor Type||NTC: -50℃~120℃ PTC: -50℃~150℃|
|Rated Current of Output Relay (Heating or Cooling)||8A/220VAC|
|Relative Humidity||20%~85% (No condensate)|
|Sensor Wire Length||2m (including the sensor)|
