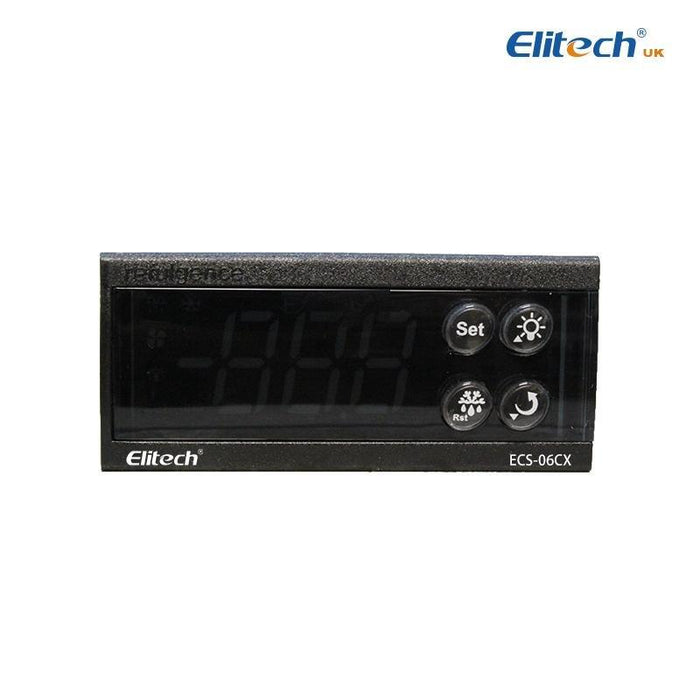

Elitech ECS-06CX temperature controller is a small, high-precision, easy-to-operate temperature controller thermostat, suitable for temperature control of refrigeration, defrosting and fan output. With temperature measurement, temperature display, temperature control, temperature correction, sensor fault alarm functions. It also has Celsius, Fahrenheit conversion functions.
It has a Copycard function, which is convenient to set the same parameter for a large number of temperature controllers. If you are an equipment manufacture or after-sale service company, this will save time.
Elitech ECS-06CX temperature controller is suitable for temperature control of medicine cabinets, supermarket split cabinet, air curtain cabinet, kitchen cabinet and other refrigeration equipment.
Two-way sensor input: temperature probe sensor, defrost probe sensor.
Three-way control outputs: refrigeration, defrosting and fan equipment.
Elitech ECS-06CX Function
|Model||Control Output||Signal Input||Other|
|Refrigeration (30A)||Defrosting (10A)||Fan (5A)||Temperature Sensor||Defrost Sensor||Over-temperature Alarm||Copy card|
|Operating Voltage||220VAC±10%; 50/60Hz|
|Overall Power Consumption||<3W|
|Temperature Measurement Range||-50℃～99℃|
|Temperature Control Range||-50℃～99℃|
|Temperature Measurement Accuracy||±1℃(-40℃～50℃ ), ±2℃(51℃～70℃), Others±3℃|
|Display Resolution||Temperature Sensor：0.1℃，Defrost Sensor：1℃|
|Mounting Dimension||71×29 (mm)|
|Rated Current of Output Relay (Refrigeration)||30A/220VAC|
|Rated Current of Output Relay (Defrosting)||10A/220VAC|
|Rated Current of Output Relay (Fan)||5A/220VAC|
- Pass EMC test, industrial level four test, stable and reliable
- Sensor fault alarm
- Copy card function for quick parameter setting

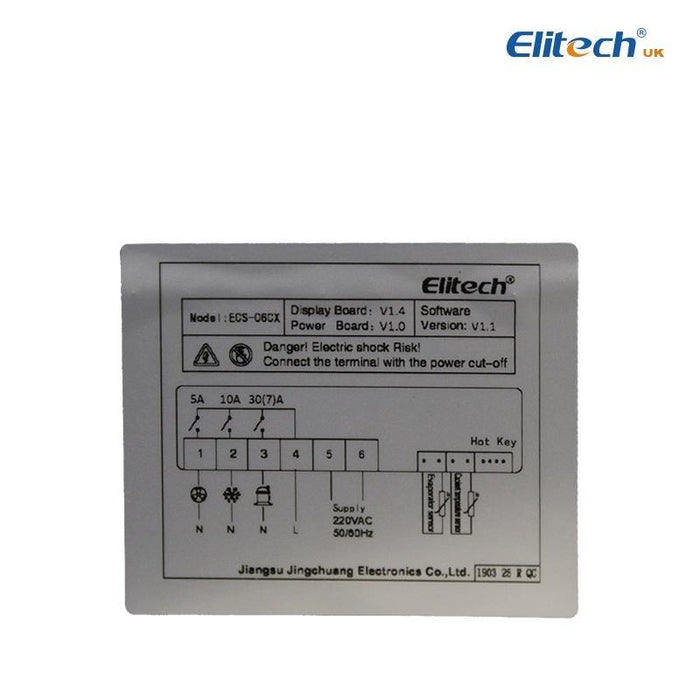

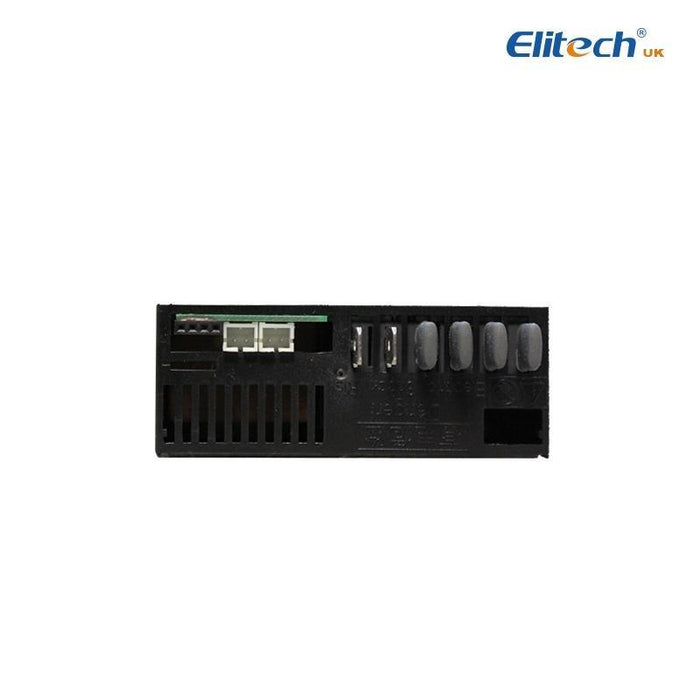

- Plug-in terminal wiring
- Medicine cabinets
- Supermarket split cabinet
- Air Curtain Cabinet
- Kitchen cabinet
Elitech Three-Way Output Temperature Controller Comparison
