Elitech IR-200 Infrared & Heated Diode Leak Detector for Air Conditioner and Automotive Repair

Save 33%
ElitechSKU: IR-200

Price:
£220 £329.99
Stock:
In stock

Description

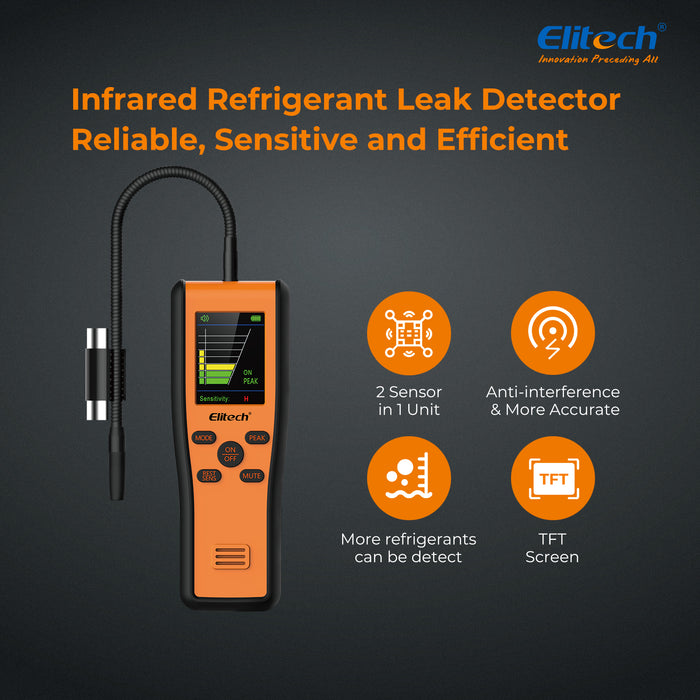

Elitech IR-200 is a portable refrigerant leak detector with a superior combination of infrared and heated diode sensors. This leak detector combines infrared and heated diode sensor which can easily switch between two modes. It can easily find refrigerant leaks on commercial refrigeration systems, restaurant soda machines, or any other system. Pinpoint tiny leaks in high concentration environments with ease.

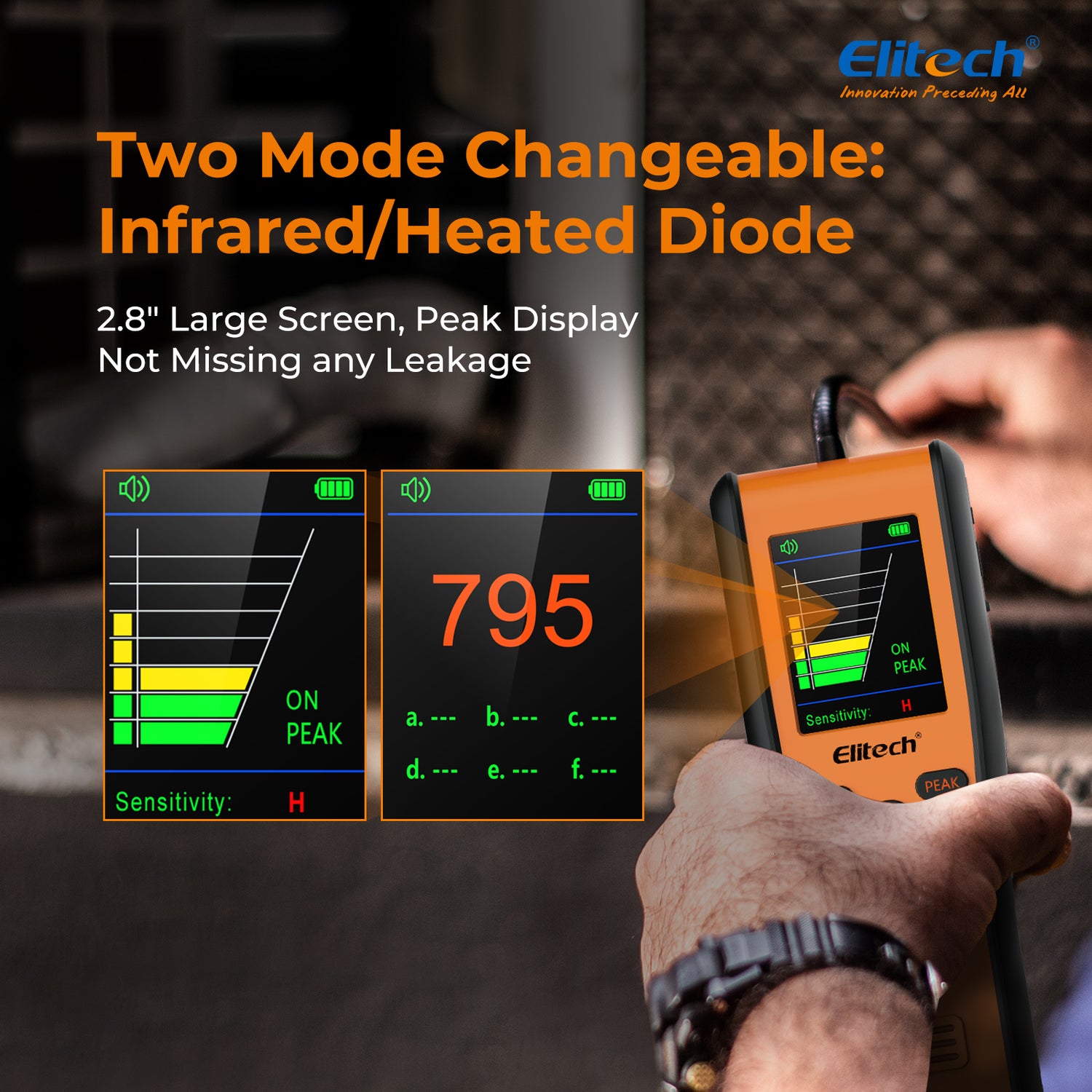

Featured with TFT screen, Elitech IR-200 detects leaks as small as 4 grams/yr (0.14 oz/yr). It has three sensitivity settings to keep false triggering to a minimum. A quick and automatic 30-second self-calibration upon power-up ensures optimal performance. It comes with a rechargeable and removable lithium-ion battery which powers the IR-200 for 8 hrs of continuous operation before a recharge is needed.


Key Feature

  • Suitable for more refrigerant, including HFCs, HCs, HCFCs, CFCs, HFO-1234
  • Locate range and fixed-point, applicable to any complex conditions

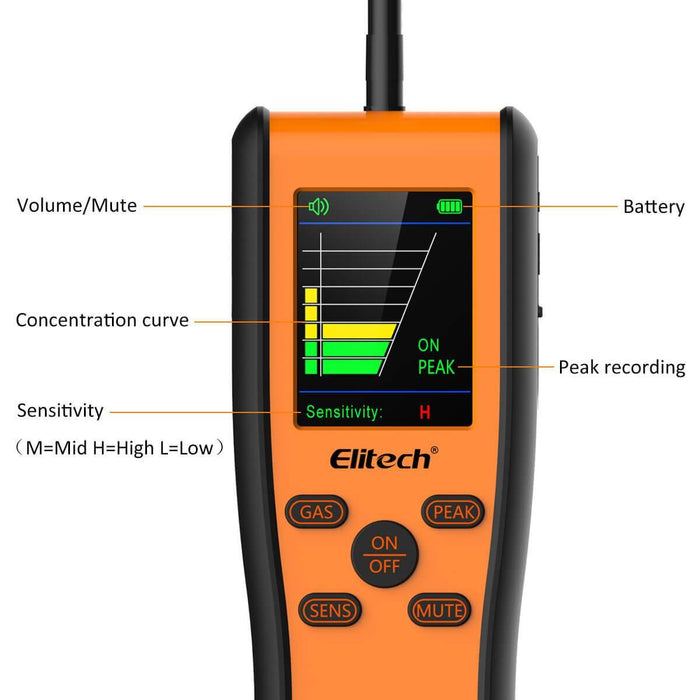

  • Real-time display of concentration curve and peak recording
  • Lower power consumption and longer battery life
  • High-performance sensor tip, avoid water ingress
  • 10 minutes auto-off
  • 2 Year's Warranty

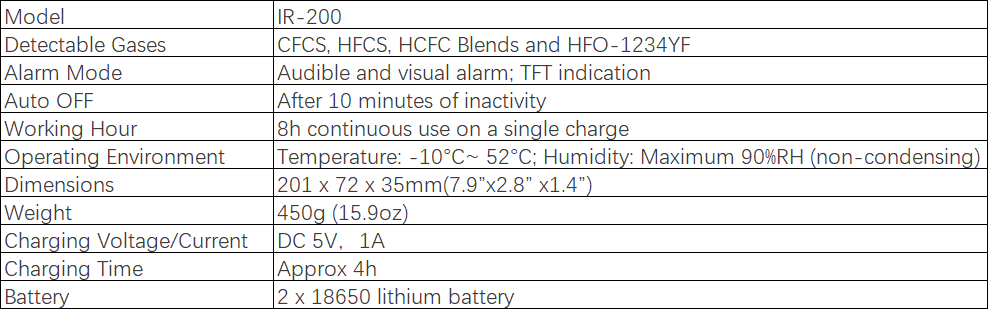

Specification

Refrigerants  CFCs, HFCs, HCFC series and HFO-1234YF
Sensor Life

Infrared Sensor: 10 Years;

Heated Diode Sensor: 500 Hours

Sensitivity

Infrared Sensor: up to 4g/year;

Heated Diode Sensor: up to 13g/year

Sensors Infrared & Heated Diode
Alarm Mode Audible & Visual Alarm
Auto-Off After 10 min of inactivity
Power Supply 2 * 18650 lithium battery
Operating Hour 8 hours continuously (after a single charge)
Charging Time Approx. 4 hrs
Charging Voltage/Current DC 5V, 1A
Storage Temperature -20℃~60℃ (-4℉~140℉)
Operating Temperature -10℃~52℃
Operating Humidity Maximum 90%RH (non-condensing)
Certifications CE, EN14624:2012, RoHS, SAE_J1627, SAE_ J2791, SAE_J2913
Dimensions 201 x 72 x 35mm(7.9”x2.8” x1.4”)
Weight 450g (15.9oz)
Warranty 2 years

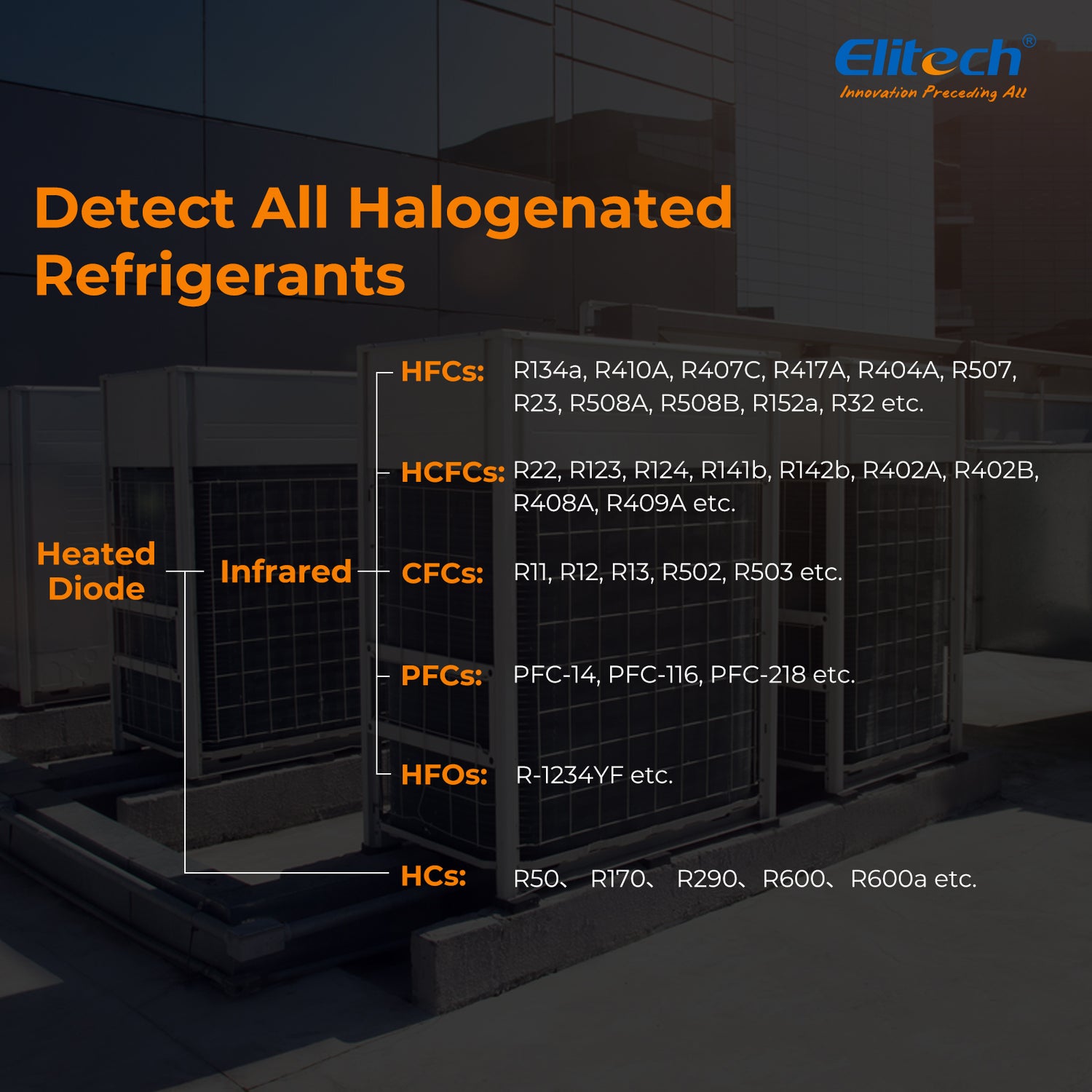

Refrigerants

Type Details
CFCs R11、 R12、 R13、 R502、 R503
HCFCs R22、 R123、 R124、 R141b、 R142b、 R402A、 R402B、 R408A、 R409A
HFCs R134a、 R410A、 R407C、 R417A、 R404A、 R507、 R23、 R508A、 R508B、 R152a
Blends  AZ-50. HP62. MP39,etc.
HC R170、 R290、 R600a、R1270
PFC PFC-14、 PFC-116、 PFC-218
HFO-1234
C2H4F2 R152a Difluoroethane

Please kindly note that for HC refrigerants, it just can be used for small household appliances.

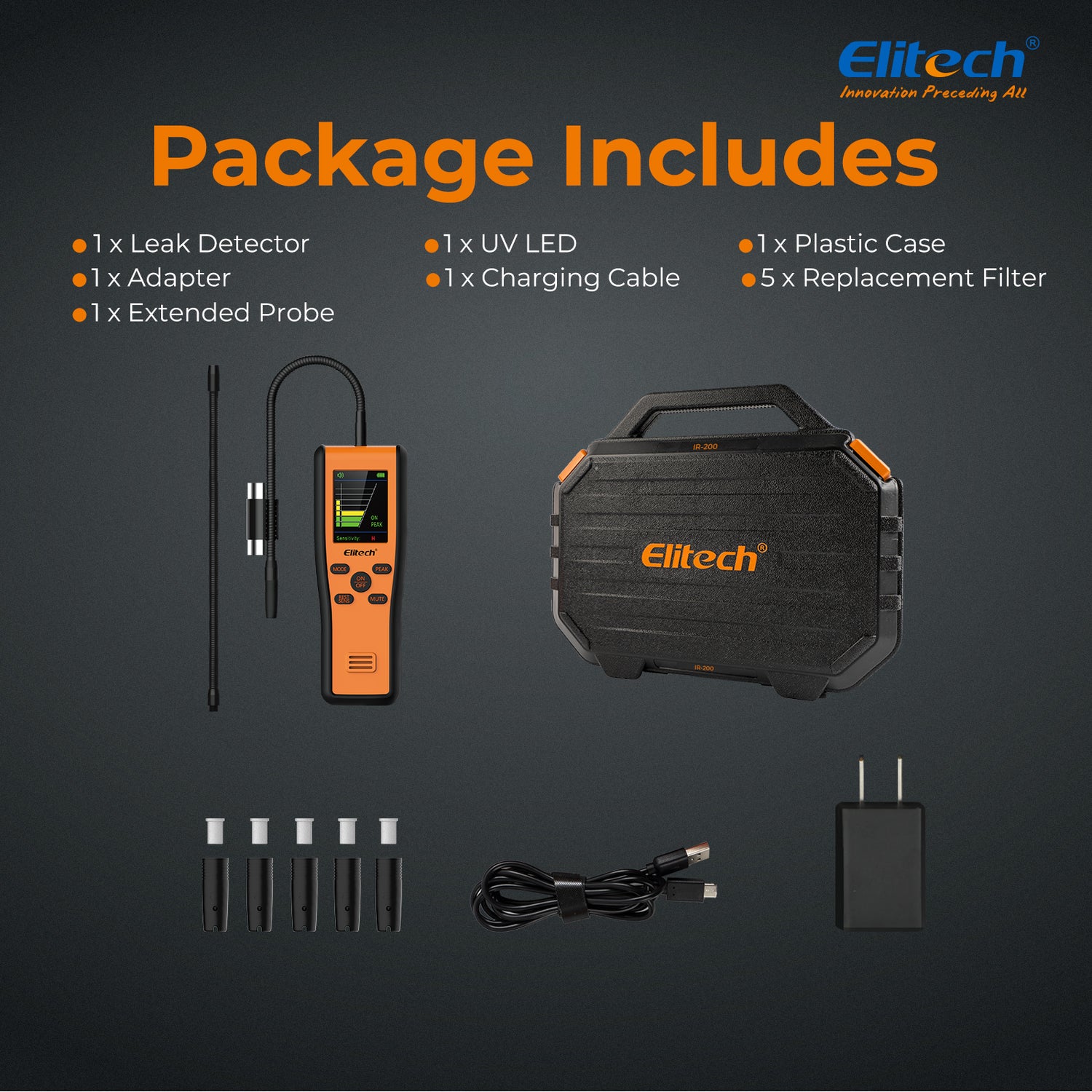

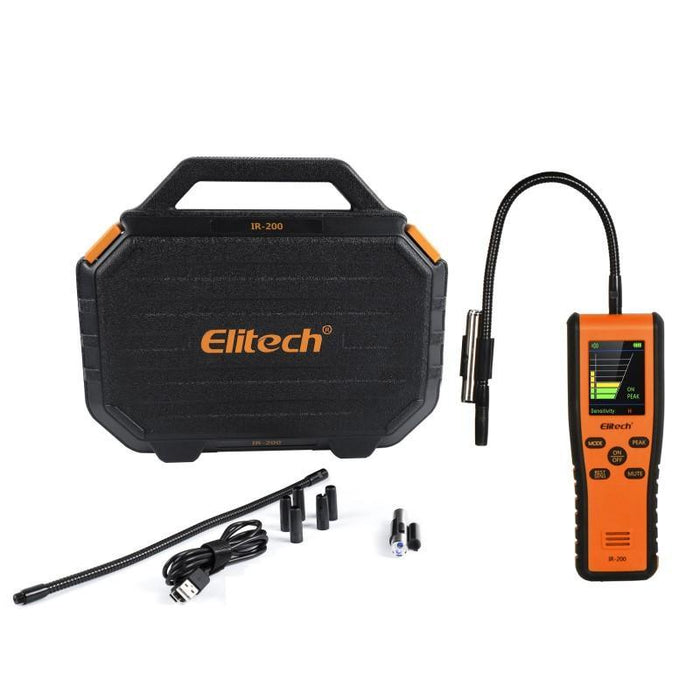

What's Included

  • 1 x Leak Detector
  • 1 x UV LED
  • 1 x User Manual (Download)
  • 1 x Plastic Case
  • 1 x Adapter
  • 1 x Charging Cable
  • 5 x Replacement Filter
  • 1 x Replacement Probe
