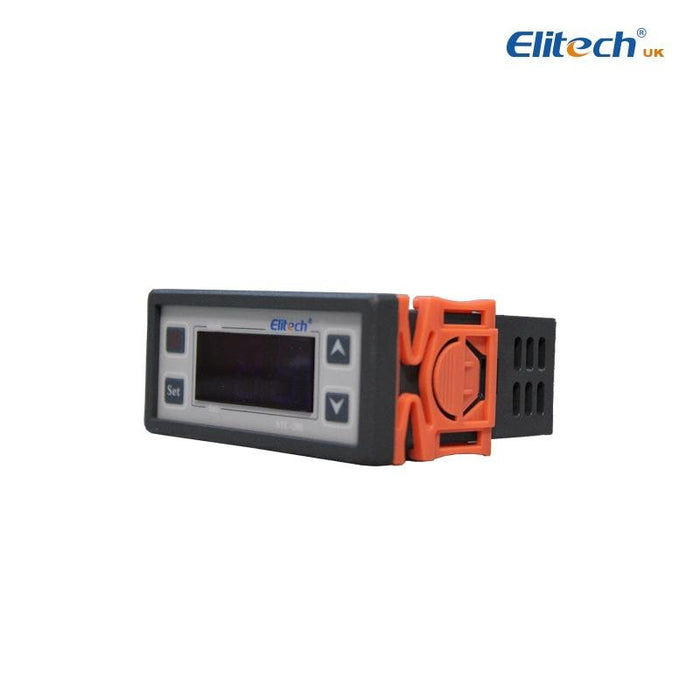

Elitech STC-200 Temperature Controller
Elitech STC-200 temperature controller is a small, high-precision, easy-to-operate temperature controller thermostat, suitable for temperature control of cooling/ heating/ alarm output. With temperature measurement, temperature display, temperature control, temperature correction, sensor fault alarm, adjustable compressor delay functions.
The parameter setting of STC-200 is divided into the user menu and administrator menu. If you are an equipment company, you can set up the administrator menu parameters. The end-user only sets the user parameter menu, which is convenient for users to operate. The temperature setting of the STC-200 temperature controller uses the return difference method.
Elitech STC-200 temperature controller is suitable for simple temperature control and alarming of equipment such as freezing, refrigeration, seafood machines and water heaters.
One-way sensor input: temperature probe sensor.
One-way control output: refrigeration/ heating/ alarm equipment.
Elitech STC-200 Function
| Model | Control Output | Signal Input | ||||
| Refrigeration | Heating | Alarm | Temperature Sensor | |||
| STC-200 | Refrigeration/ Heating / Alarm (10A) | √ | ||||
Parameter
| Model | STC-200 |
| Operating Voltage | 220VAC±10%; 50/60Hz |
| Overall Power Consumption | <3W |
| Temperature Measurement Range | -40℃～99℃ |
| Temperature Control Range | -40℃～70℃ |
| Temperature Measurement Accuracy | ±1℃ |
| Display Resolution | 1℃ |
| Product Size | 77×34.5×65.5（mm） |
| Mounting Dimension | 71×29 (mm) |
| Rated Current of Output Relay | 10A/220VAC |
Features
- Pass EMC test, industrial level four test, stable and reliable
- Three modes selectable: refrigeration/ heating/ alarm
- Upper and lower temperature limits to avoid misuse
- Single point control, the adjustable temperature difference
- Parameters are set by user/administrator menu, easy to operate
- Proportional on/off in case of sensor fault
Application
- Medium and high-temperature cold storage
- Freezer
- Aquaculture
- Hatchery farming
- Greenhouse planting
- Seafood machine
Elitech One-Way Output Temperature Controller Comparison
| Function | Model | Rated Current of Output Relay | Input | Others | |
| Temperature Sensor | Defrost Sensor | Bigger Display Screen | |||
| Refrigeration | STC-8000H | 10A | √ | / | / |
| STC-8000HX | 10A | √ | / | √ | |
| Refrigeration/Heating | EK-3010 | 10A | √ | / | √ |
| ECS-02CX | 10A | √ | √ | √ | |
| ECS-961neo | 17A | √ | / | √ | |
| ECS-16 | 30A | √ | / | / | |
| Refrigeration/Heating/Alarm | STC-200 | 10A | √ | / | / |
