Elitech DMG-1 Digital Pressure Gauge HVAC Refrigeration Manifold Gauge

2 sold in last 8 hours
DMG-1
£199.99 £119.99
Elitech DMG-1 digital manifold gauge set is perfect replacement of traditional analog gauges. It stores 91 kinds of refrigerant evaporation temperature database. Equipped with one red (high side) pressure gauge, one blue (low side) pressure gauge, 2-way valve block with three connections and a suspension hook, the HVAC/R instrument enables a...
£119.99
customers are viewing this product

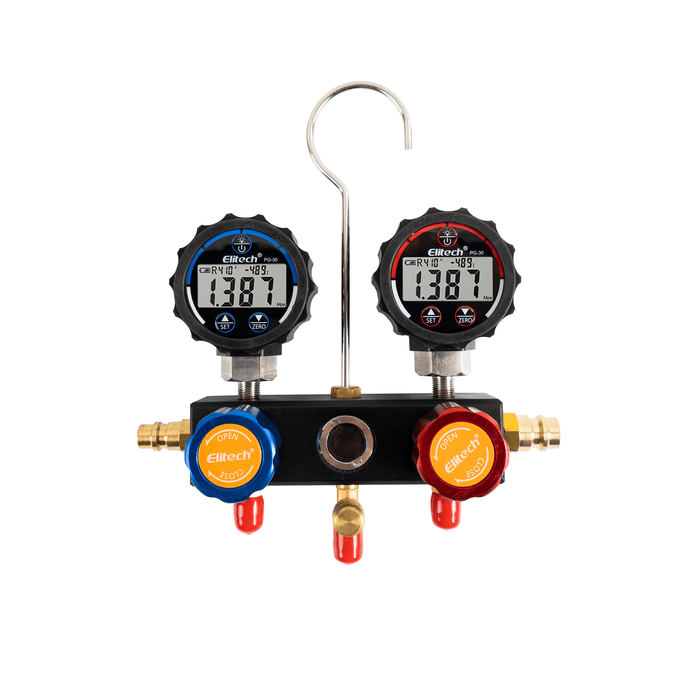

Elitech DMG-1 digital manifold gauge set is perfect replacement of traditional analog gauges. It stores 91 kinds of refrigerant evaporation temperature database. Equipped with one red (high side) pressure gauge, one blue (low side) pressure gauge, 2-way valve block with three connections and a suspension hook, the HVAC/R instrument enables a convenient application.

Product Features

  • Applicable to 91 Refrigerants.  91 Kinds of Refrigerants' evaporation and condensation temperature database is built-in. Evaporation (on red gauge) and condensation temperature (on blue gauge) will display on the LCD screen once a refrigerant is selected.
  • Accurate High/Low Pressure Test. The manifold gauge has a sensitive pressure sensor which can test high-side and low-side pressure with an accuracy of ±0.5% FS and resolution of 0.5 psi.
  • Max./Min. Value Memory & Zeroing. The gauges can record maximum and minimum pressure value tested, which you can check any time. And if you want to remove the record, it's easy to reset it to zero.
  • Multiple Pressure Unit Choices.  The gauges can be set to show pressure value in different units: MPa, kPa, bar, psi, kg/m² and cmHg.
  • Ready to Use. The manifold gauge provides a full set of accessories: 3 refrigerant hoses, 1 can tap, 2 pressure couplers, 2 R410A adapters, 1 valve core wrench, to be ready for use as soon as you receive it. All of these are in a sturdy carry case which you can take to everywhere easily.





 Product Specifications

Pressure Measuring Range

 -14.5~500 psi (Low side)
 -14.5~800 psi (High Side)

Operating Temperature

-10~60℃

pressure Resolution

0.5 psi

pressure Accuracy

±0.5% FS

Battery Runtime

Six months

Power supply

3V CR2450 button cell

Sampling Rate

1 s

Display

37mm x 17mm LCD/gren backlight

Temperature Units

MPa, kPa, bar, psi, kgf/cm2, mmHg

Out-of-Range Alarm pressure

Displays __OL__

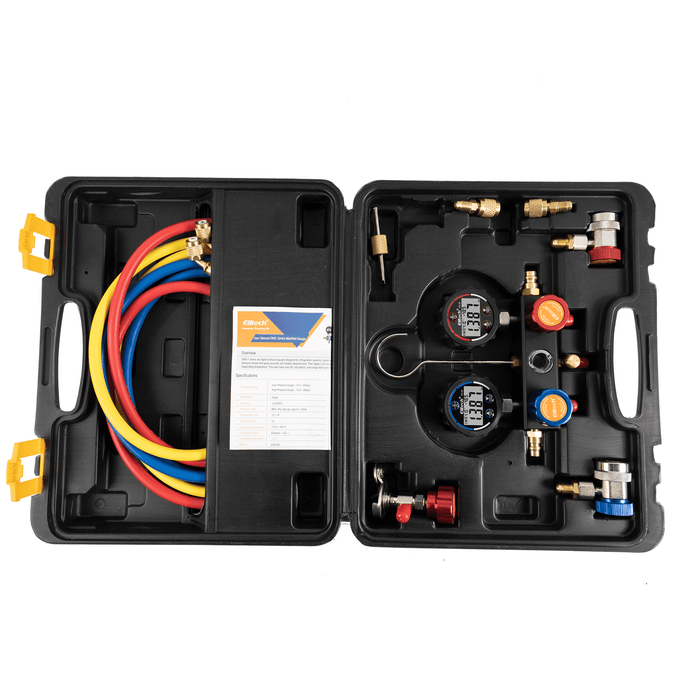

What's Included

Manifold gauge set *1 (one blue and one red gauge),

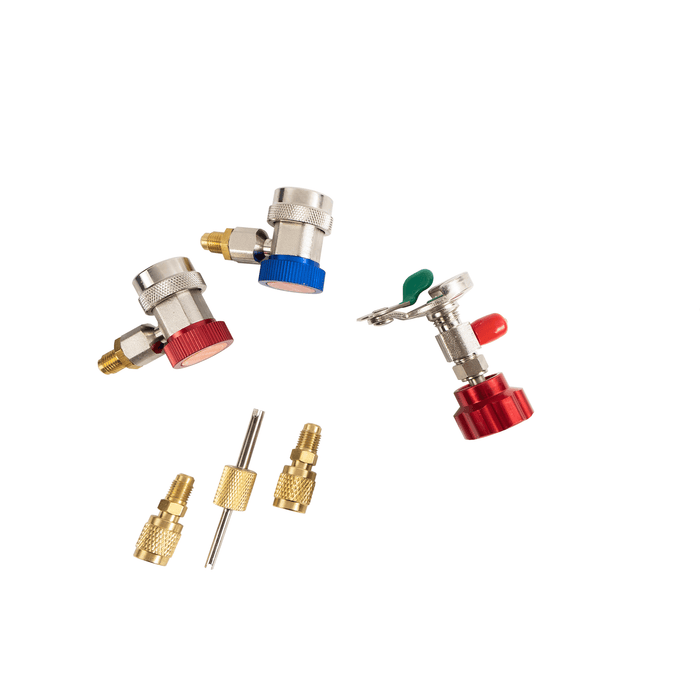

High Pressure Coupler * 1,

Low Pressure Coupler * 1,

Can Tap * 1,

Valve Core Wrench * 1,

R410A adapter * 2

1.5m fluorine hose * 3 (Min pressure: 800 psi; max pressure: 4000 psi),

High and low pressure test connector * 2 (Low side: blue; high side: red),

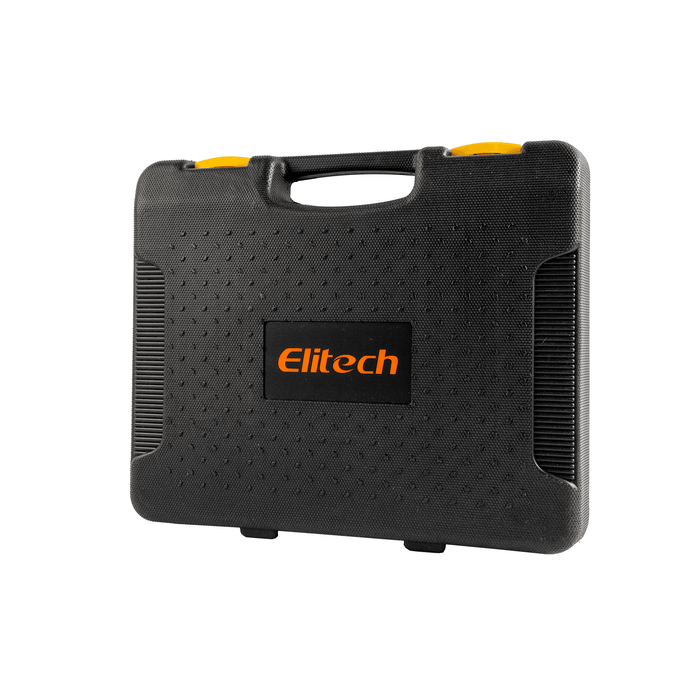

Carry Case *1

Manual * 1
