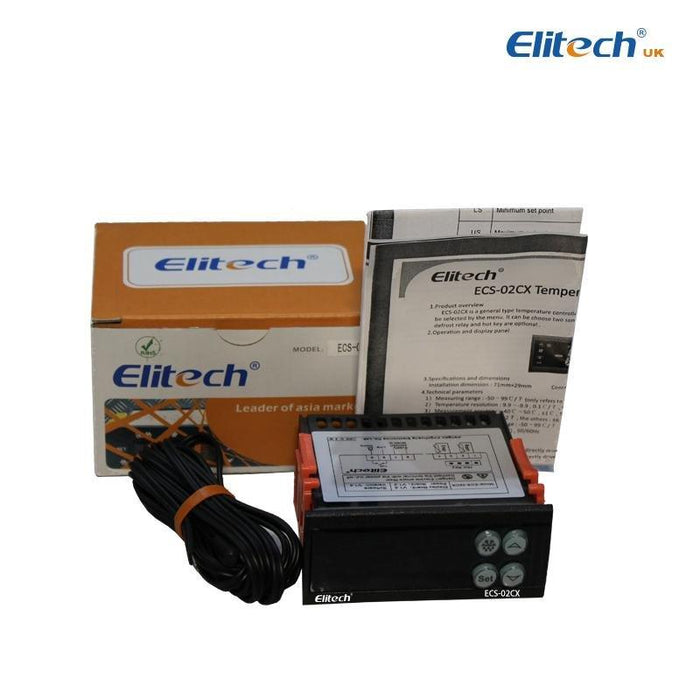

Elitech ECS-02CX temperature controller is out of stock. Pre-sale.*
Elitech ECS-02CX temperature controller is a small, high-precision, easy-to-operate temperature controller thermostat, suitable for temperature control of refrigeration/ heating. It has two probe sensors: temperature sensor and defrosting sensor can achieve shutdown defrost function. With temperature measurement, temperature display, temperature control, temperature correction, sensor fault alarm functions. It also has Celsius, Fahrenheit conversion functions.
It has a Copycard function, which is convenient to set the same parameter for a large number of temperature controllers. If you are an equipment manufacture or after-sale service company, this will save time.
Elitech ECS-02CX temperature controller is suitable for temperature control of medicine cabinets, supermarket split cabinet, air curtain cabinet, kitchen cabinet and other refrigeration equipment.
Two-way sensor inputs: temperature probe sensor, defrost probe sensor.
One-way control output: refrigeration equipment.
Elitech ECS-02CX Function
|Model||Control Output||Signal Input||Other|
|Refrigeration||Heating||Temperature Sensor||Over-temperature Alarm||Copy card|
|ECS-02CX||Refrigeration/ Heating (10A)||√||√||√|
|Operating Voltage||220VAC±10%; 50/60Hz|
|Overall Power Consumption||<3W|
|Temperature Measurement Range||-50℃～99℃|
|Temperature Control Range||-50℃～99℃|
|Temperature Measurement Accuracy||±1℃(-40℃～50℃ ), ±2℃(51℃～70℃), Others±3℃|
|Display Resolution||0.1℃(-9.9-9.9)，Others ℃|
|Mounting Dimension||71×29 (mm)|
|Rated Current of Output Relay (Refrigeration)||10A/220VAC|
- Pass EMC test, industrial level four test, stable and reliable
- Copy card function for quick parameter setting
- Sensor fault alarm

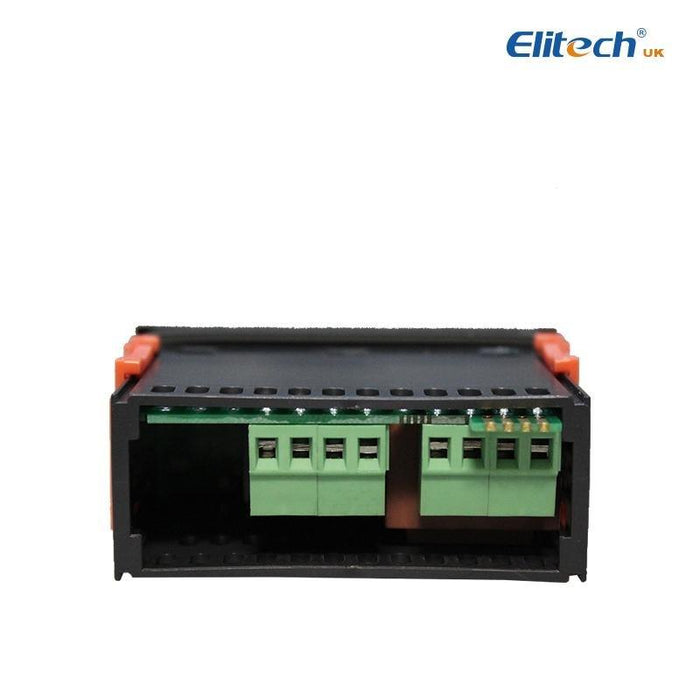

- Plug-in terminal wiring
- Medicine cabinets
- Supermarket split cabinet
- Air Curtain Cabinet
- Kitchen cabinet
Elitech One-Way Output Temperature Controller Comparison
|Function||Model||Rated Current of Output Relay||Input||Others|
|Temperature Sensor||Defrost Sensor||Bigger Display Screen|
