Elitech ECS-180A Digital Temperature Controller Waterproof Cooling System Quick Connection, Cooling Defrosting Fan Control Output

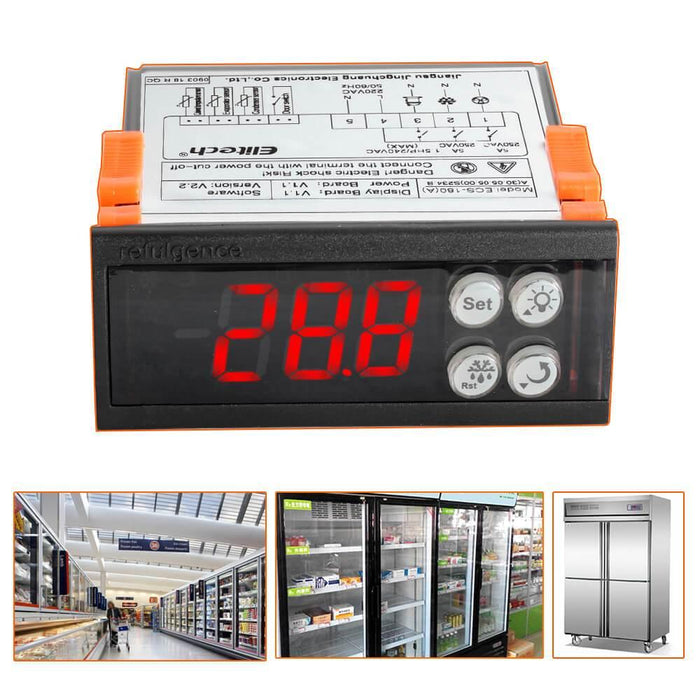

Elitech ECS-180A (ECS180A) digital temperature controller with big light inlet window, LED display, display area increases 50%; wear-proof key design, front panel multiple color optional. With the function of one key recovery, which could recover parameter setting directly, convenient for production and after-sale maintenance. With an internal transformer, which could simplify the wiring operation, saving labor costs.

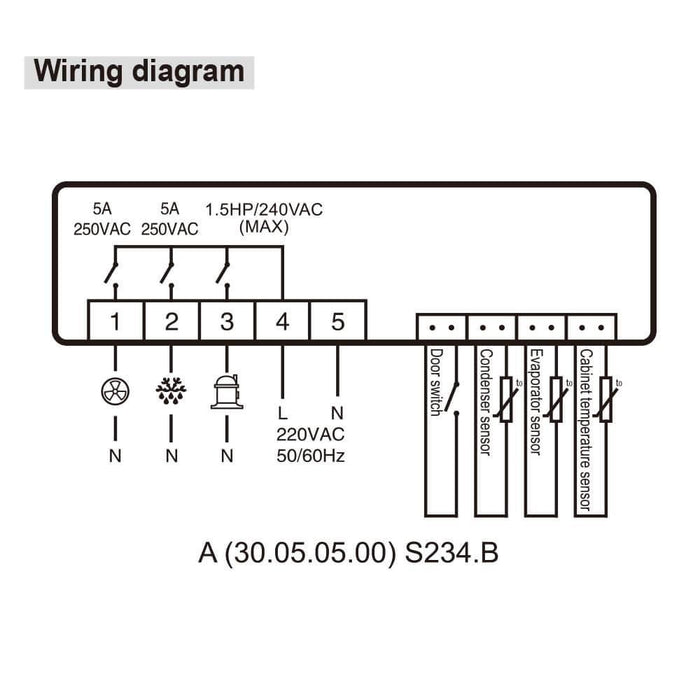

Four-way sensor input: temperature probe sensor, condenser probe sensor, evaporator probe sensor, door switch.
Three-way control output: refrigeration, defrosting and fan equipment.
Elitech ECS-180A Function
Model | Control Output | Signal Input | Others | ||||||
Refrigeration | Defrosting | Fan | Temperature Sensor | Condenser Sensor | Evaporator Sensor | Door Switch | ℃/℉ | ||
ECS-180A | 30 | 5A | 5A | √ | √ | √ | √ | √ |
Parameter
Model | ECS-180A |
Operating Voltage | 220VAC±10%; 50/60Hz |
Overall Power Consumption | <3W |
Temperature Measurement Range | -50℃-90℃ or -58°F-194°F |
Temperature Control Range | -50℃-85℃ or -58°F-185°F |
Temperature Measurement Accuracy | ±1℃(-40℃~50℃ ), ±2℃(51℃~70℃), Others±3℃ |
Display Resolution | 0.1℃ or 1°F |
Product Size | 78.5×34.5×82(mm) |
Mounting Dimension | 71×29 (mm) |
Rated Current of Output Relay (Refrigeration) | 30A/240VAC |
Rated Current of Output Relay (Defrosting) | 5A/250VAC |
Rated Current of Output Relay (Fan) | 5A/250VAC |
Application
- Medicine cabinets
- Supermarket split cabinet
- Air curtain cabinet
- Kitchen cabinet
- Wine cabinet
