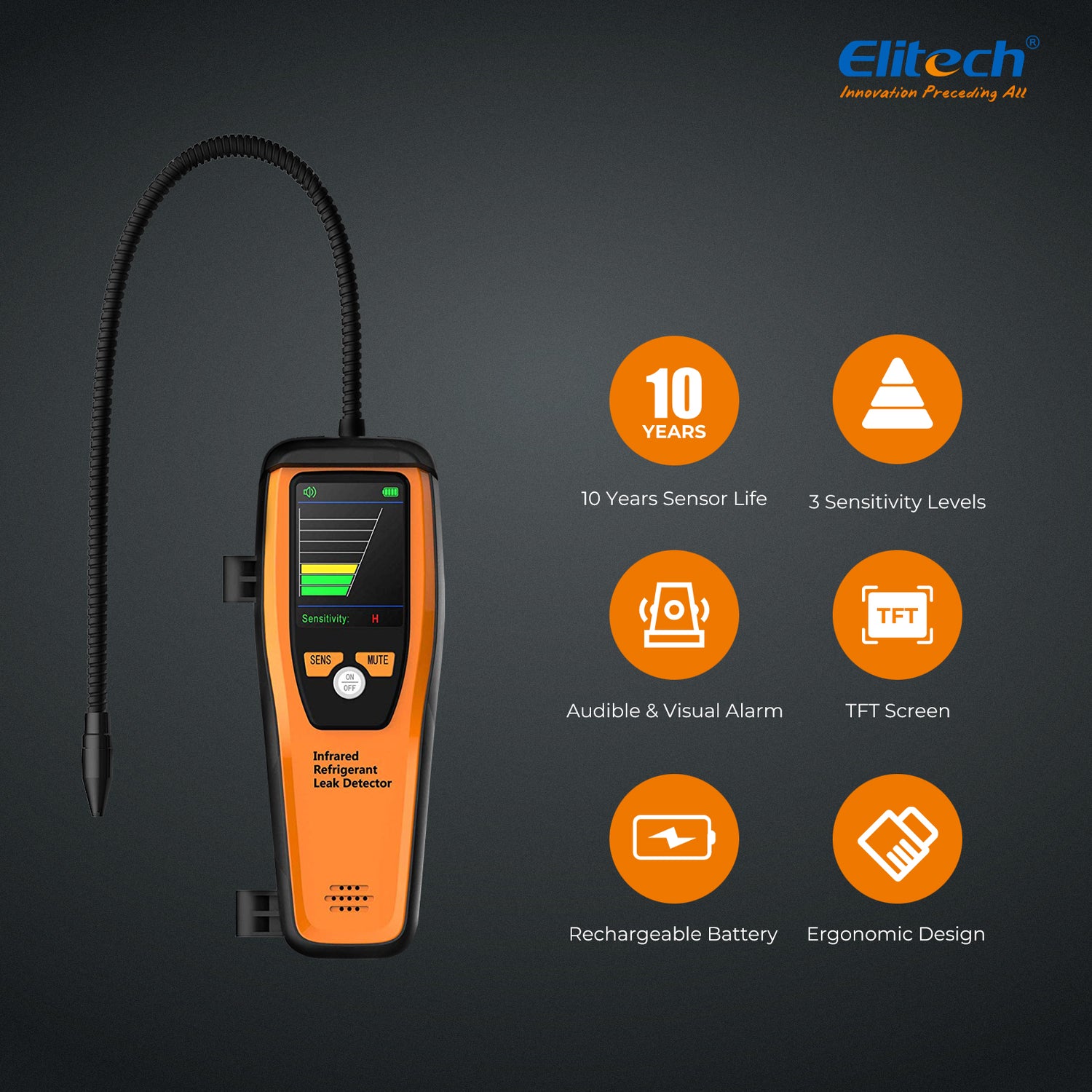

Elitech ILD-100 with leak detector for all common refrigerants CFC, HFC, HCFC, PFC, and HFO, includes leak detector, charging cable, replacement filters, and carrying case. The infrared sensor features a long service life of over 10-years, undegradable sensitivity, and limiting false alarms, which is the best sensor in the leak detection system. Moreover, with exclusive ergonomic design and innovative large TFT LCD screen, the detector optimizes the user experience and presents the detection results more intuitively and diversely. With ILD-100, you will ideally equip to carry out quick, reliable leakage detection.

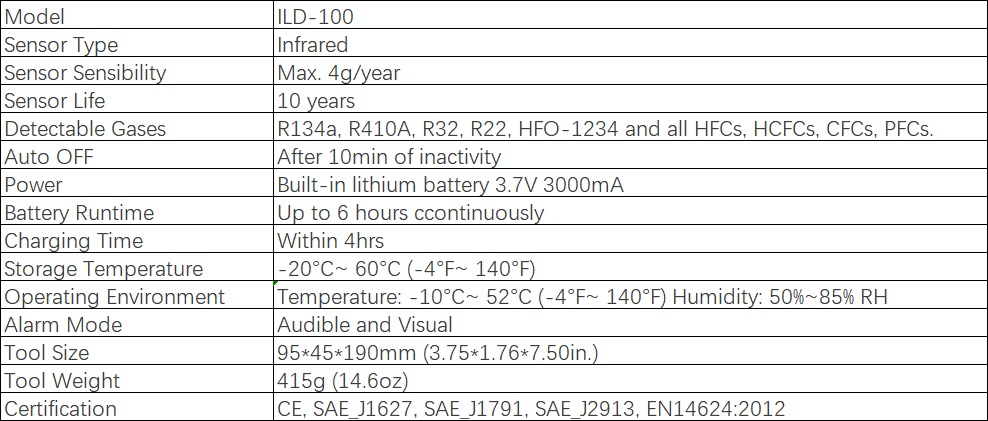

Elitech ILD-100 Parameter
||R134a, R410A, R32, R22, HFO-1234 and all HFCs, HCFCs, CFCs, PFCs.
||After 10min of inactivity
||Built-in lithium battery 3.7V 3000mA
||Up to 6 hours ccontinuously
|| -20°C~ 60°C (-4°F~ 140°F)
||Temperature: -10°C~ 52°C (-4°F~ 140°F) Humidity: 50%~85% RH
||Audible and Visual
||CE, SAE_J1627, SAE_J1791, SAE_J2913, EN14624:2012
Elitech ILD-100 Features

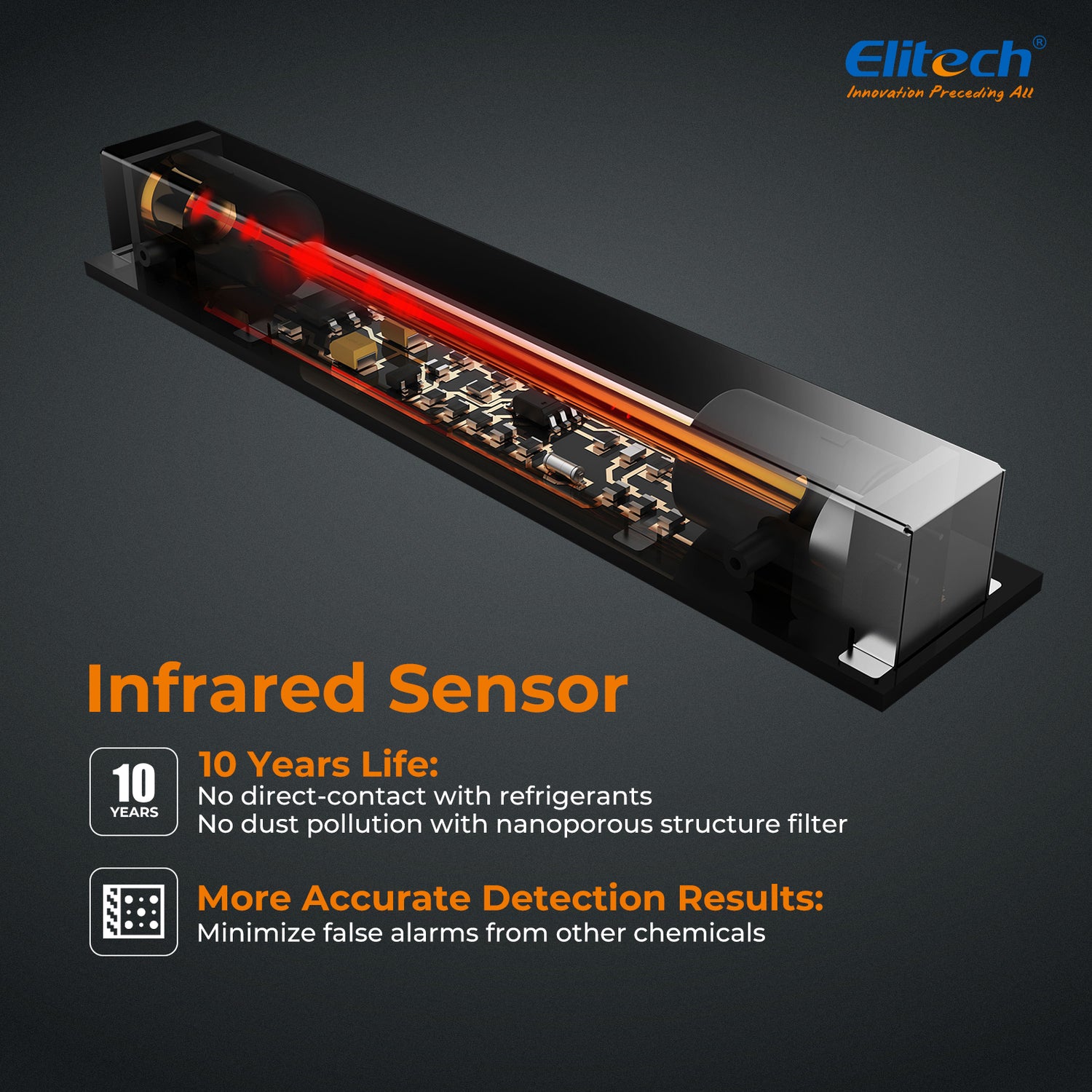

Premium Infrared Sensor* This refrigerant leak detector adopts a premium infrared sensor that has a long service life of over 10 years and its sensitivity won't degrade over time, making it the very best air conditioning leak detection tool.
Precise and High Sensitivity* The freon leak detector has a maximum sensitivity of 4g/yr, which enables the detection of even the smallest leaks. Sensitivity can also be adjusted in three different levels to pinpoint leakage quickly and precisely.

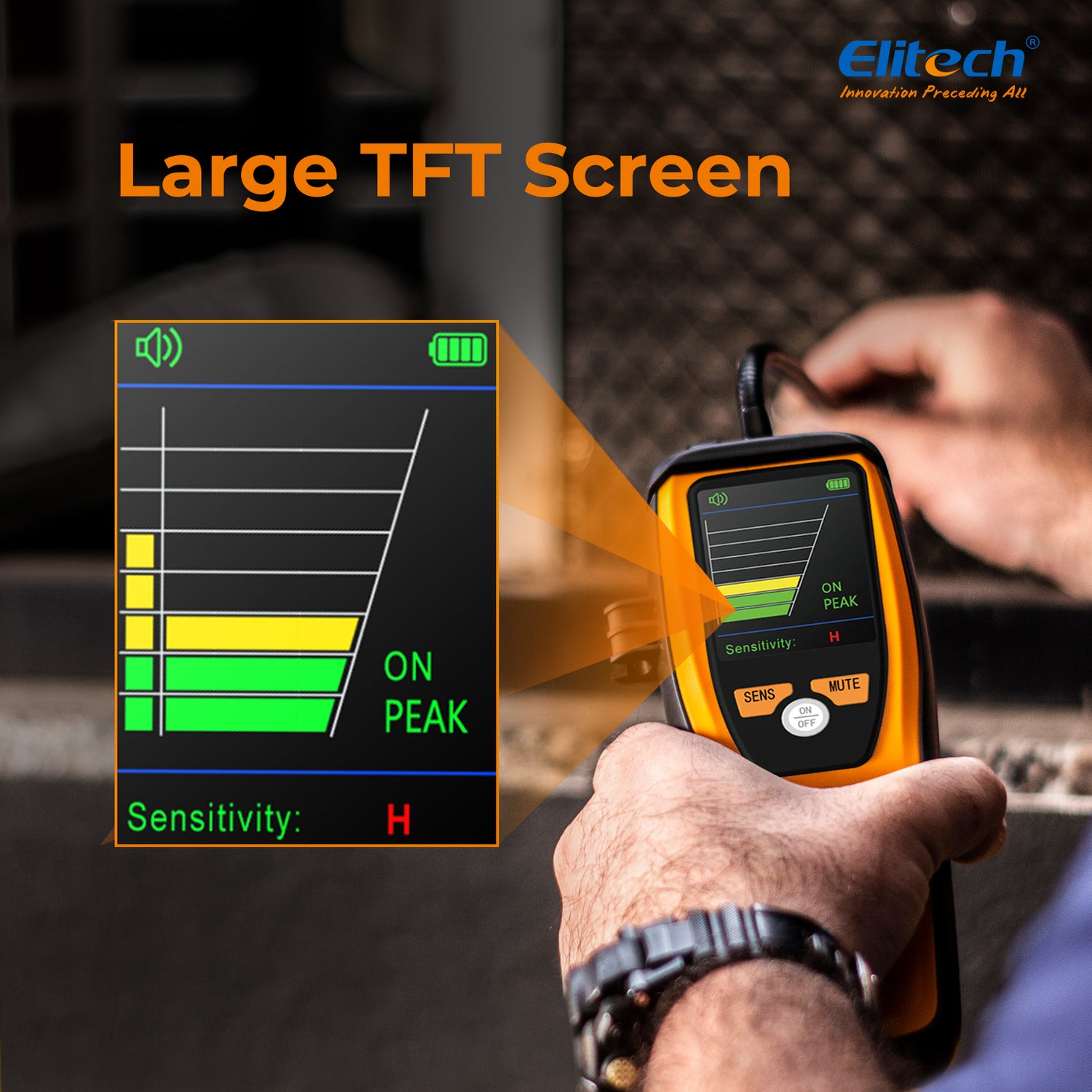

Large TFT LCD Screen* Very rarely in the industry, Elitech ILD-100 is equipped with a 2.8in. TFT LCD screen, to show real-time gas leakage concentration, sensitivity level, power, buzzer status, and false alarm. You can know everything about the detector in one glance.

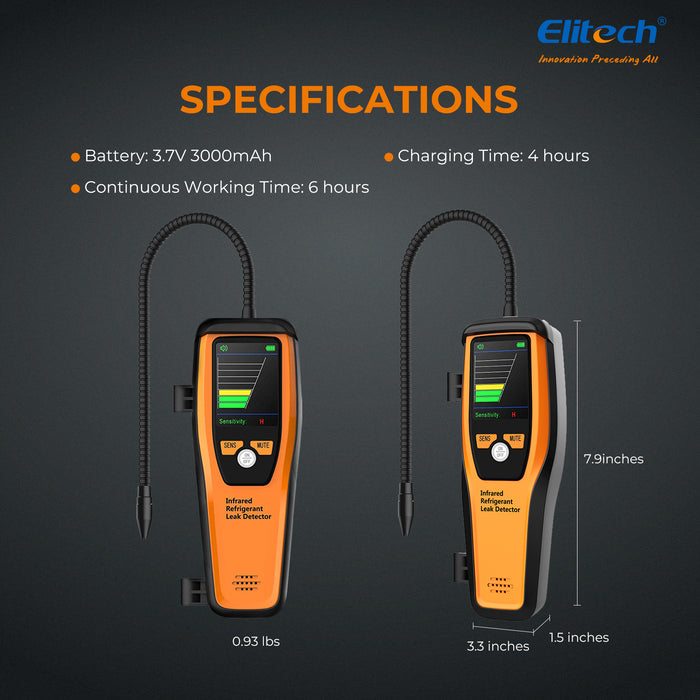

Rechargeable Lithium-ion Battery* Built-in 3.7V 3000mA lithium-ion battery can work continuously for 6 hours upon one full charge. USB charging cable is included in the package for easy recharging through the Type C port.

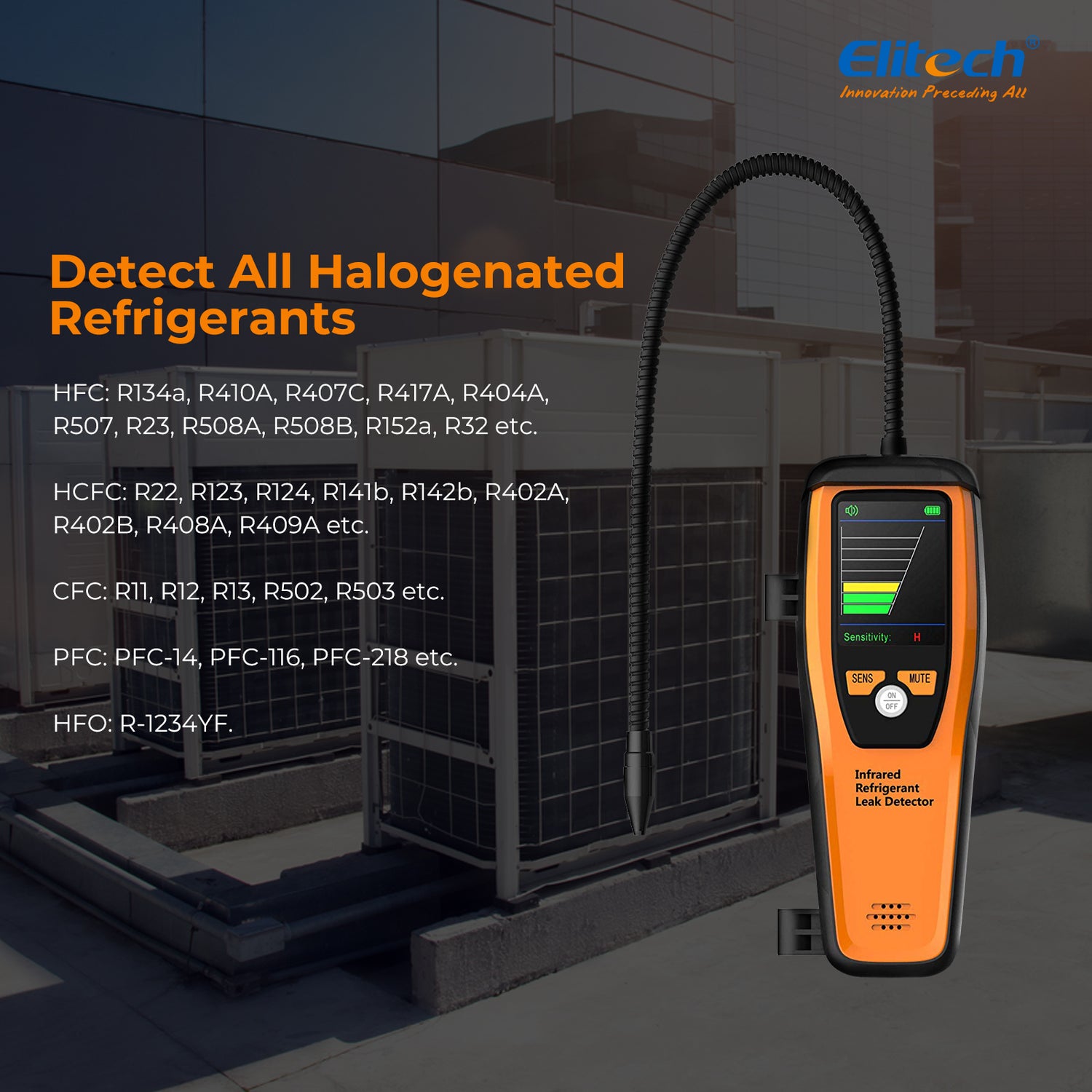

An All-rounder in Leak Detection* Elitech ILD-100 is a fast,reliable leak detector for all common refrigerants, including R134a, R410A, R32, R22, HFO-1234 and all HFCs, HCFCs, CFCs, PFCs.

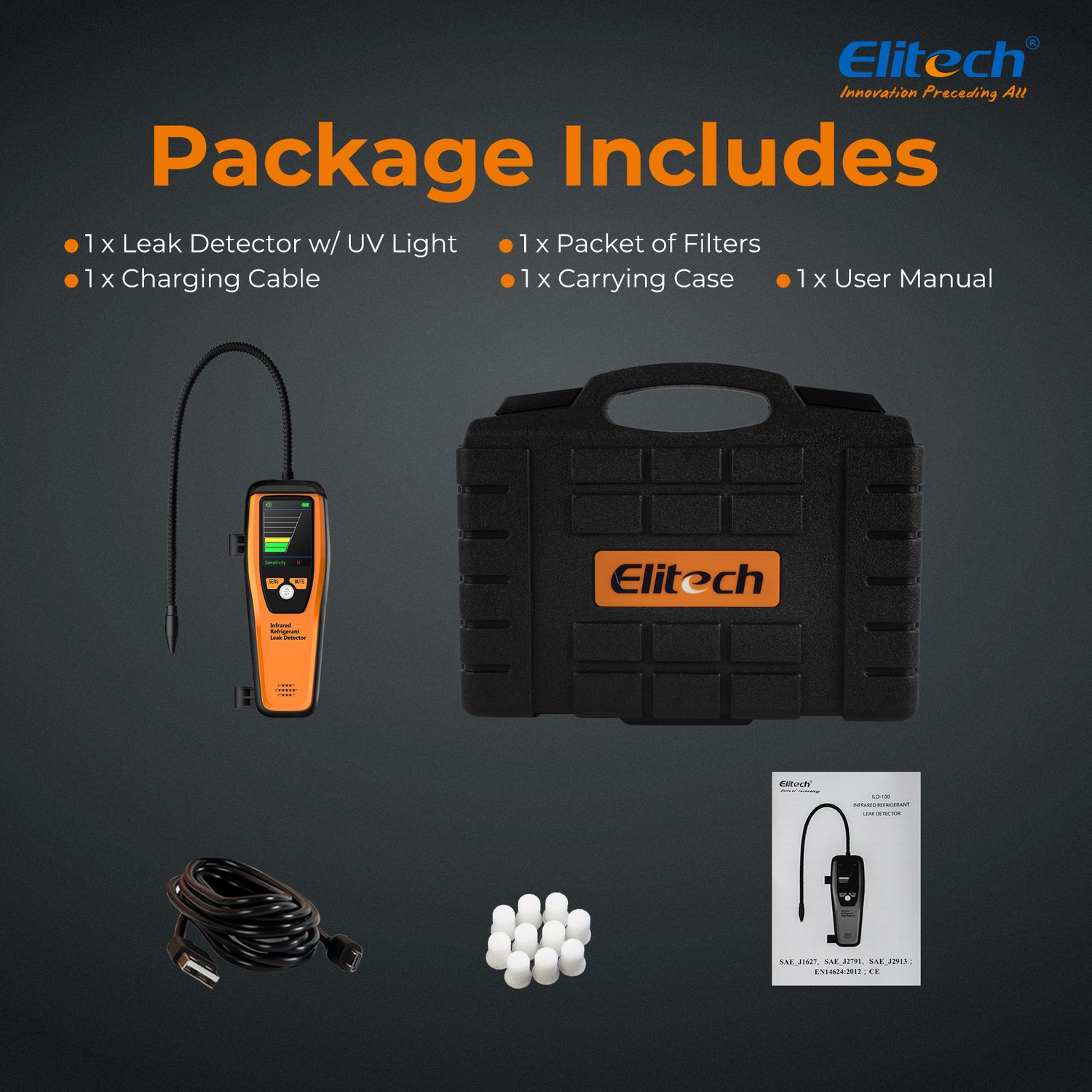

Elitech ILD-100 Package
- 1 x infrared leak detector
- 1 x USB charging cable
- 10 x replacement filters
- 1 x sturdy carrying case
Elitech ILD-100 Related Documents
Elitech Infrared Refrigerant Leak Detector Comparison
