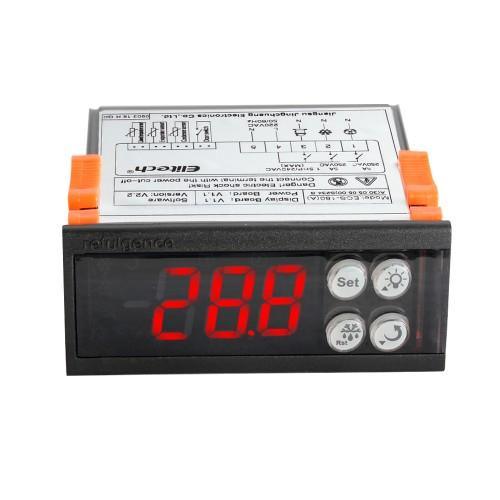

Elitech ECS-180B Temperature Controller With Cooling, Fan, Defrosting and Lighting/Alarm Four-way Control Outputs, With Evaporator Defrost Sensor, Condenser Sensor and Door Switch Input

2 sold in last 8 hours
£35.99 £32.99
Quantity :
stock in :
customers are viewing this product

// Unavailable in the EU *

ECS-180B temperature controller could be used in the middle and low-temperature medicine cabinet, kitchen cabinet, supermarket split cabinet, air curtain cabinet, island counter, wine cabinet, etc.

Four-way sensor input: temperature probe sensor, condenser probe sensor, evaporator probe sensor, door switch.
Four-way control output: refrigeration, defrosting, fan, lighting/alarm relay.


Model Control Output
Cooling Defrosting Fan Lighting / Alarming
5A 10A 10A 5A
Signal Input
Temperature Sensor Condenser Sensor Evaporator Defrost Sensor Door Switch



Model ECS-180B
Operating Voltage 220VAC±10%; 50/60Hz
Overall Power Consumption <3W
Temperature Measurement Range -50℃-90℃ (-58℉-194℉)
Temperature Control Range -50℃-85℃ (-58℉-185℉)
Temperature Measurement Accuracy ±1℃(-40℃~50℃ ), ±2℃(51℃~70℃)
Display Resolution 0.1℃/1℉
Product Size 78.5×34.5×82(mm)
Mounting Dimension 71×29 (mm)
Input Sensor Temperature Sensor, Evaporator Sensor, Condenser Sensor, Door Switch
Rated Current of Output Relay  5A/250VAC (Cooling, Lighting/Alarm)
Rated Current of Output Relay  10A/250VAC (Defrosting, Fan)
Front Panel Waterproof Level IP65



  • The large panel of color digital tube, work status symbol display, the temperature display resolution is 0.1, the front panel waterproof level lP65.
  • lt has a temperature sensor self-test function, and once test the failures, it has multiple protection and alarm methods. lt has the function of one-key recovery, and the rear adopts the plug-in connection method to effectively simplify processing for equipment manufacturers.
  • The temperature measuring unit could switch between Celsius and Fahrenheit.
  • With the function of Synchronous defrost switch signal detection, and it could form the network of real-time clock Synchronous defrost.
  • Cabinet temperature over-limit alarm has two modes: absolute value and relative value.
  • Light/external alarm relay could be selected by the software, and then select the function of external alarm relay, it could connect the remote alarm bell.
  • If selected to install a standby power supply access unit, which could realize the function of off-power detection and alarm.
  • With the complete control logic of hot-gas defrost start without the pressure difference in the refrigerant pipe, to prevent starting with the pressure, for the purpose of a longer compressor life.
Elitech ECS-180B Four-way Outputs Temperature Controller User Manual
