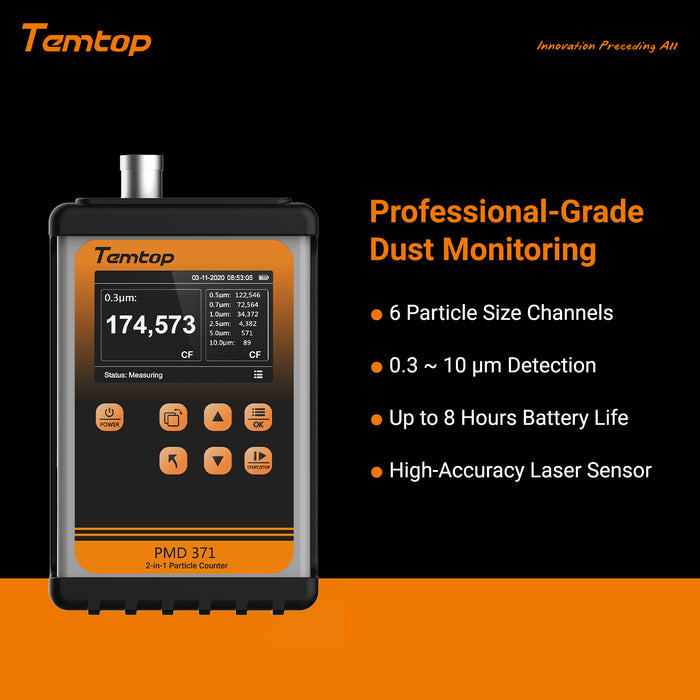

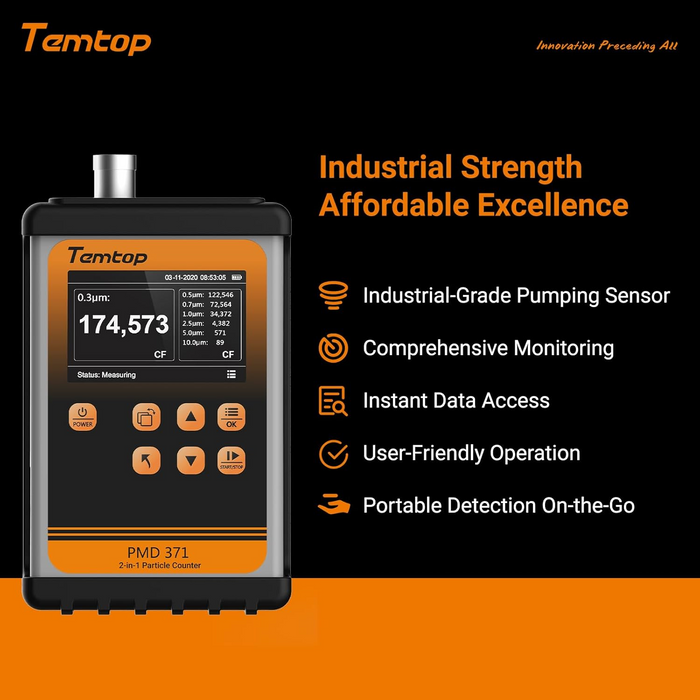

Temtop PMD371 Professional Particle Counter, Handheld Aerosol Dust Monitor with 7 Channels (0.3-10μm), PM2.5/PM10/TSP, Ideal for Cleanrooms, Construction Sites & Industrial Air Quality Monitoring.

【Industrial-Grade Precision for High-Pollution Areas】

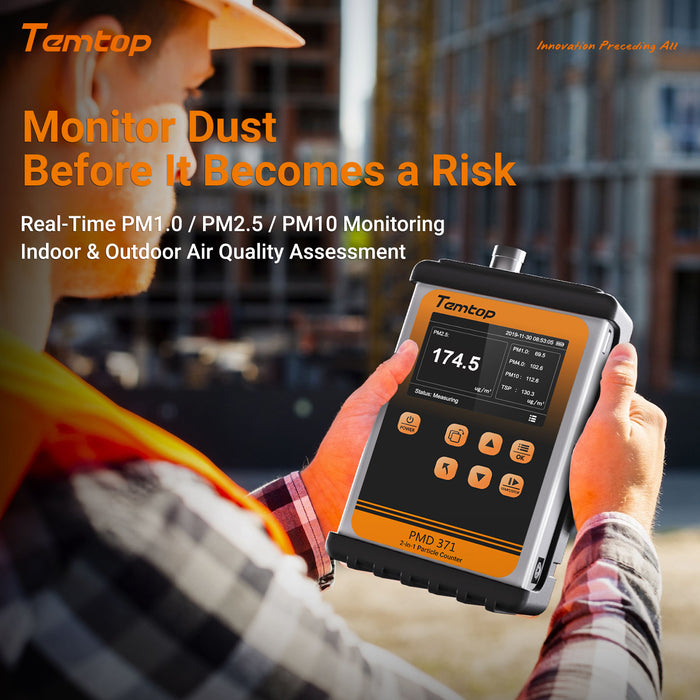

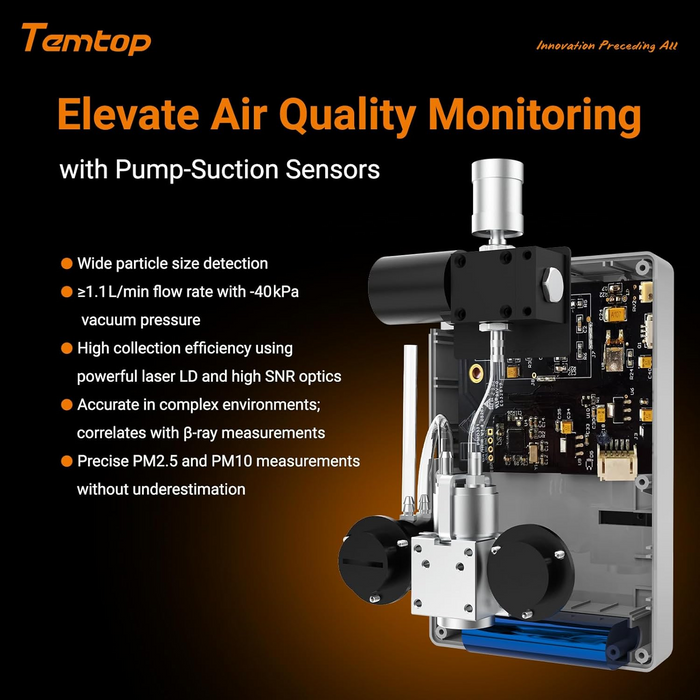

Engineered with a high-performance laser sensor, the PMD371 delivers medical-grade accuracy even in most challenging air quality conditions. It monitors 7 particle size channels (0.3μm to 10μm) simultaneously, ensuring reliable data for PM2.5, PM10, and TSP monitoring during peak smog seasons.

【7-in-1 Comprehensive Detection & TSP Monitoring】
A versatile power player for environmental compliance. This handheld monitor tracks PM1.0, PM2.5, PM4.0, PM10, TSP, and particle counts. It is specifically designed to meet the rigorous standards of pharmaceutical labs, electronics manufacturing, and cleanroom ISO verification.

【Rugged All-Metal Construction for Site Durability】


Unlike plastic monitors, the PMD371 features a robust aluminum alloy housing that offers superior anti-interference and impact resistance. It is built to withstand the harsh, dusty environments of construction sites, mining operations, and industrial workshops.

【Extended 8-Hour Battery Life & Field Portability】
Powered by a high-capacity rechargeable lithium battery, providing up to 8 hours of continuous operation on a single charge. Its ergonomic, handheld design allows for easy mobile monitoring across different field sites from Delhi to Mumbai without frequent recharging.

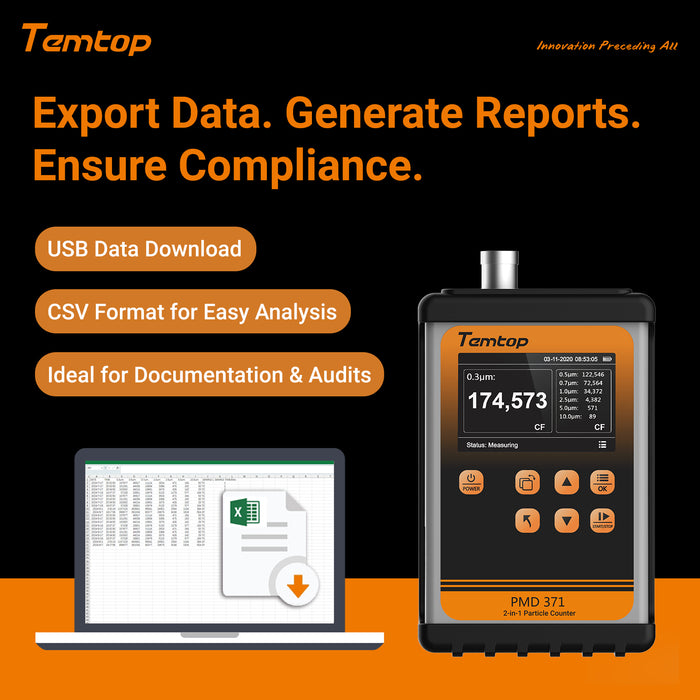

【Massive 2 Million Data Points & Easy Export】
Equipped with a massive 8GB internal memory, it can store up to 2,000,000 sets of data. Seamlessly export logs via USB or RS-485 (Modbus RTU) to generate professional compliance reports for environmental consultants and factory auditors.

Specifications:

Model: PMD 371
Dimensions: 170 mm * 110 mm * 48 mm
Weight: 850g
Power Supply: Built-in high-performance lithium battery
Operating Time: Up to 8 hours
Storage Capacity: 8GB
Display: Large display screen
Buttons: 7 operation buttons

Detection Range:

Particle Count: 0-3,000,000 CF (particles per cubic foot)
PM1.0, PM2.5, PM4.0, PM10, TSP: 0~9999.9 µg/m³
Accuracy: ±10%
Resolution: 0.1 µg/m³
Sampling Time Settings: 1 min, 2 min, 5 min, 10 min, 15 min, 30 min, 60 min
Communication Modes: USB and RS-485
Data Points Recordable: 2,000,000
Light Source: 50mW, 780nm
Flow Rate: 2.83 L/min; error ±5%

Detection Function and Measurement Accuracy:

Particulate Matter Detection:
PM2.5: Accuracy ±10 µg/m³ (0~100 µg/m³), ±10% (100~999 µg/m³), resolution 0.1 µg/m³, measurement range: 09999.9 µg/m³ (0~10 mg)
PM10: Accuracy ±15 µg/m³ (0~100 µg/m³), ±15% (100~990 µg/m³), resolution 0.1 µg/m³, measurement range: 0~9999.9 µg/m³
PM1.0: Accuracy ±10 µg/m³ (0~100 µg/m³), ±10% (100~999 µg/m³), resolution 0.1 µg/m³, measurement range: 0~9999.9 µg/m³
PM4.0: Accuracy ±10 µg/m³ (0~100 µg/m³), ±10% (100~999 µg/m³), resolution 0.1 µg/m³, measurement range: 0~9999.9 µg/m³
TSP: Accuracy ±20 µg/m³ (0~100 µg/m³), ±20% (100~30,000 µg/m³), resolution 0.1 µg/m³, measurement range: 0~9999.9 µg/m³

Particle Count: Seven channels for particles sized 0.3µm to 10µm (0.3µm, 0.5µm, 0.7µm, 1.0µm, 2.5µm, 5.0µm, 10µm), resolution: 1 particle/cubic foot, measurement range: 0-3,000,000 CF. Four switchable units: /L, /CF, /m³, TC.

Notice: ISO certificates for individual units are optional and subject to additional charges. To ensure "shipment with equipment," please contact us for a customized quote before placing your order.

Temtop PMD 371 Particle Counter User Manual

Temtop PMD 371 Particle Counter CE Certificate
