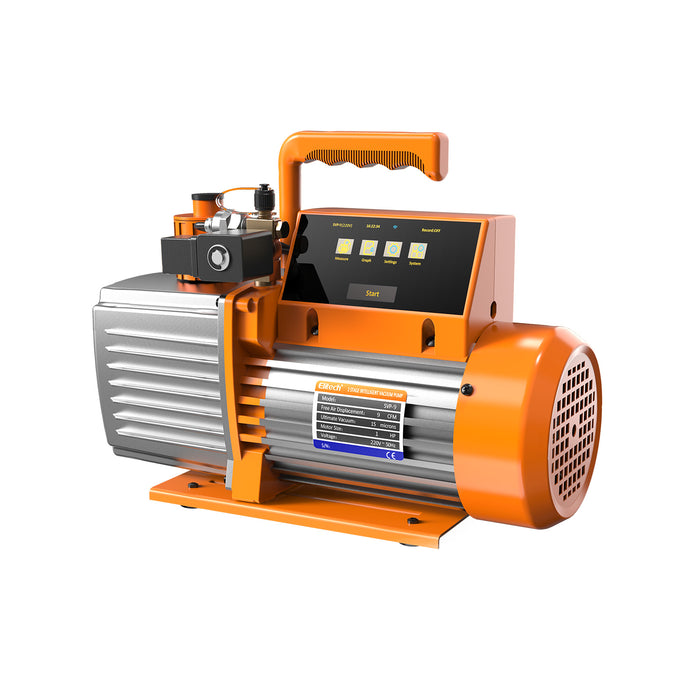

Elitech SVP-9 Intelligent 2-Stage Vaccum Pump, 9CFM,4S/L, APP Control, Data Logging, Smart Control, HVAC Refrigerator Auto Air Condition Service Tool

2 sold in last 8 hours
SVP-9 EU
£549.99 £499.99
Version :
customers are viewing this product

Elitech SVP-9 2-stage vacuum pump is an intelligent vacuum pump that can be controlled through APP via Bluetooth connection at a distance of 30ft/10m maximum, the pumping rate is 4 L/S (9 CFM) and the motor power is 1 HP (750 W).

Elitech SVP-9 Intelligent 2-Stage Vaccum Pump Function-Elitech UK

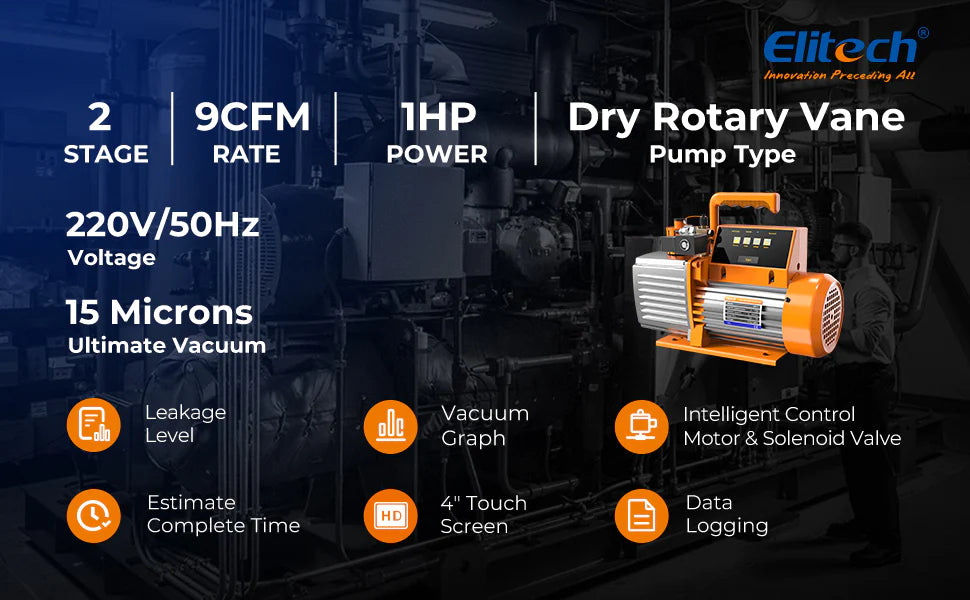

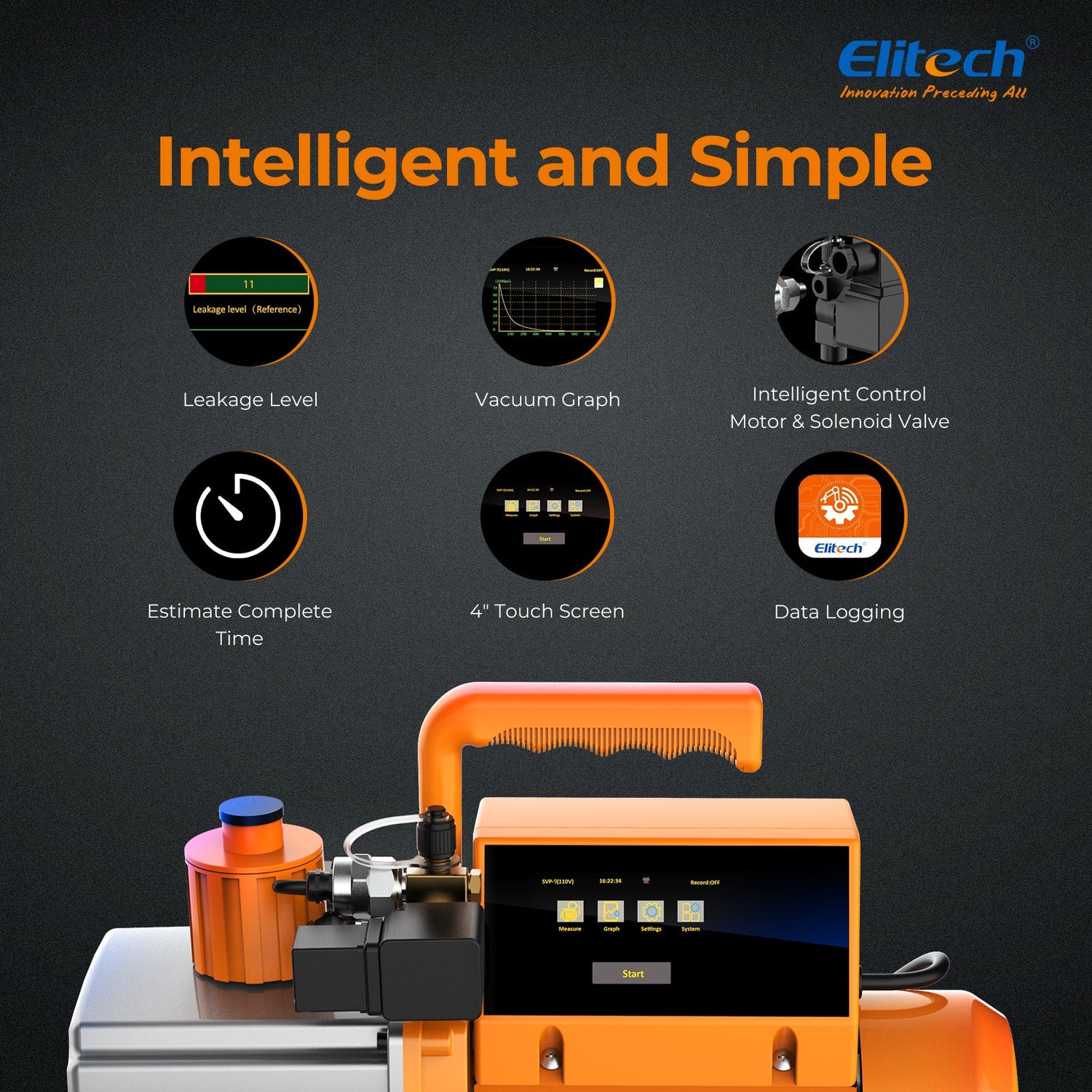

Elitech SVP-9 Vacuum Pump Features

Intelligent Control*   The motor and solenoid valve will turn off automatically once the programmed vacuum value is reached. When the pump sensed working temperature is abnormally high due to motor failure or insufficient oil, the pump will automatically close the solenoid valve to protect it from big defects.

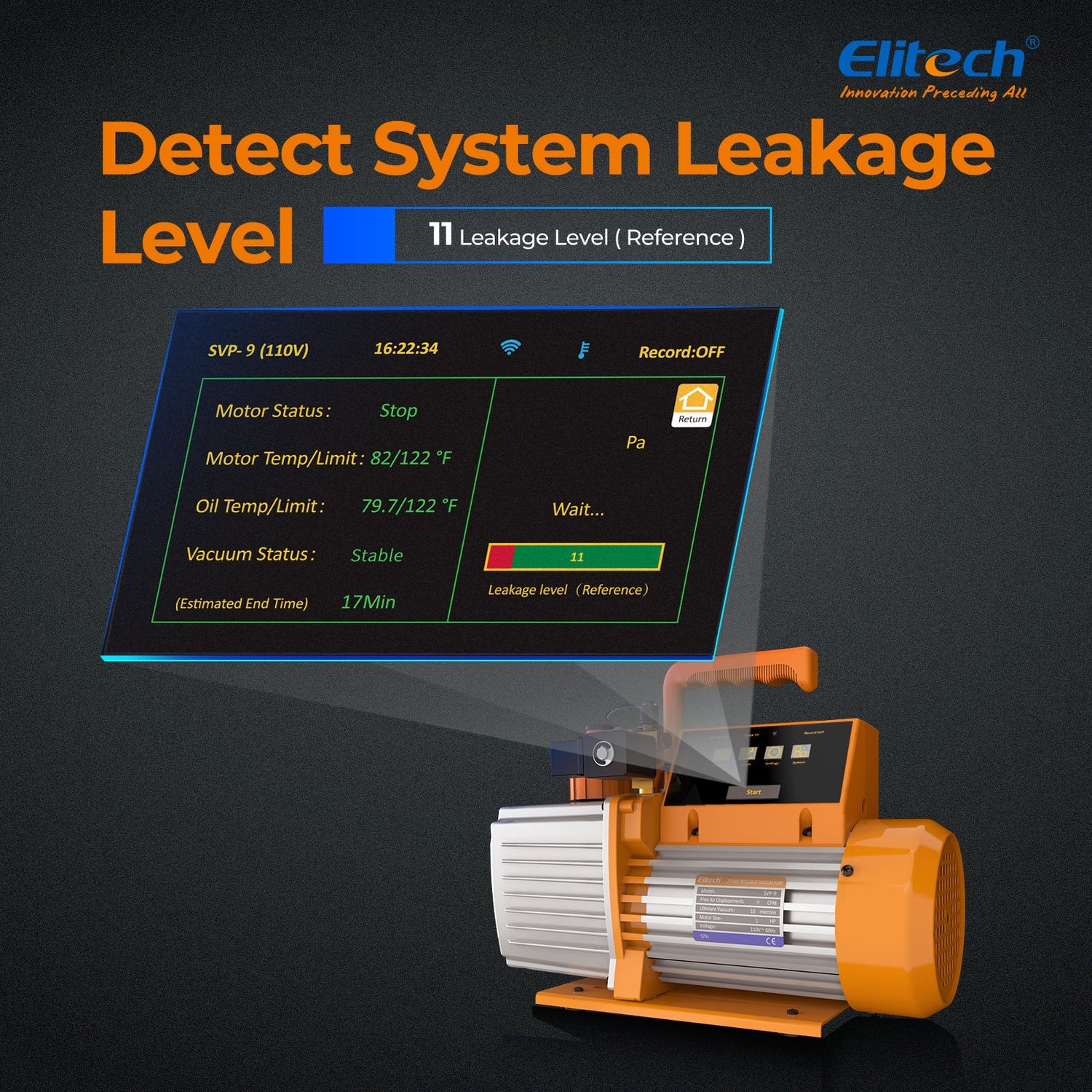

System Leakage Judgement*   Based on sophisticated analysis of vacuum value change and pump working status, the pump will judge system leakage level and display leakage level in the bar for easy reference.

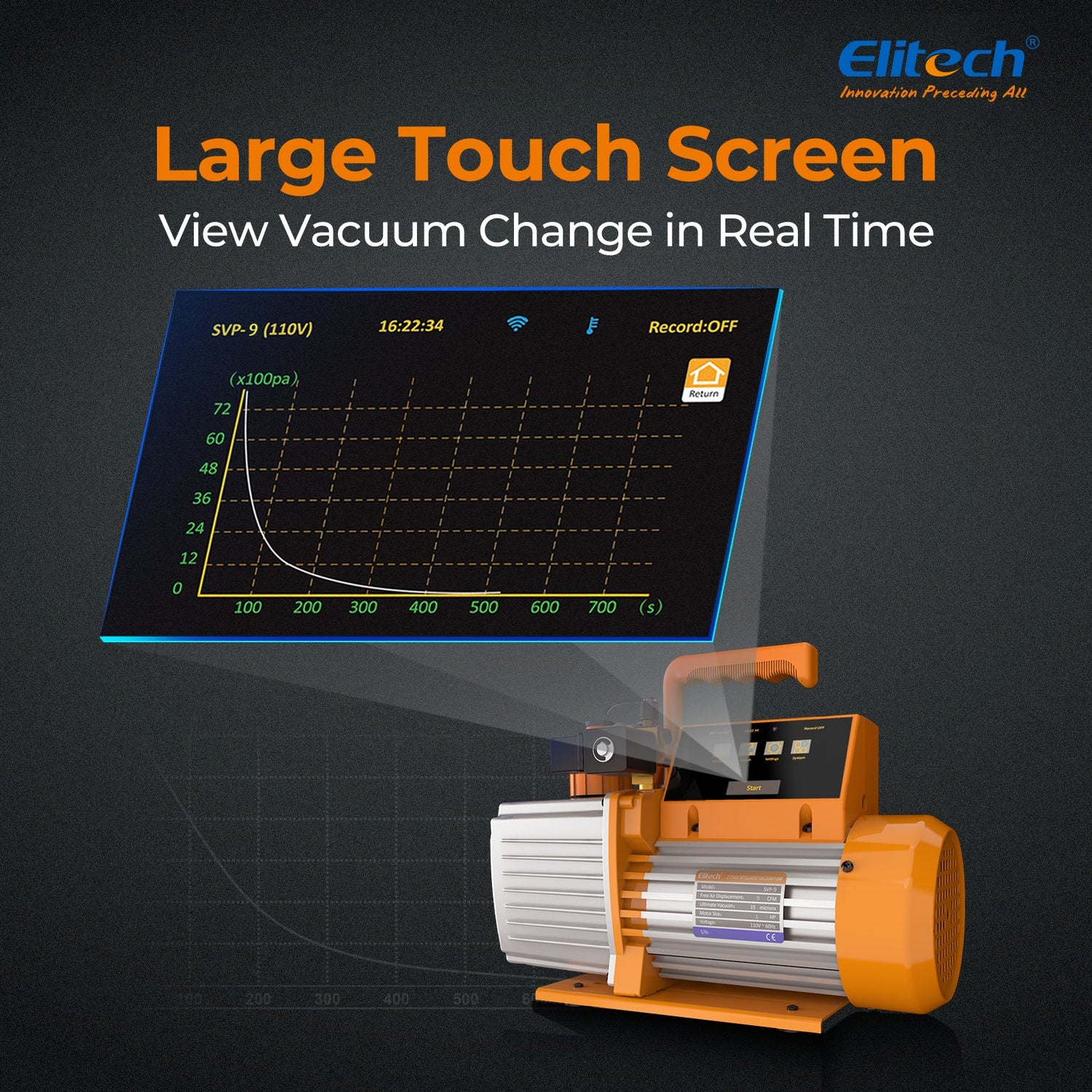

Vacuum Value & Graph Display*   When the vacuum value drops below 60,000 microns, the real-time vacuum value and graph will show on the 4'' touch screen for quick knowledge.

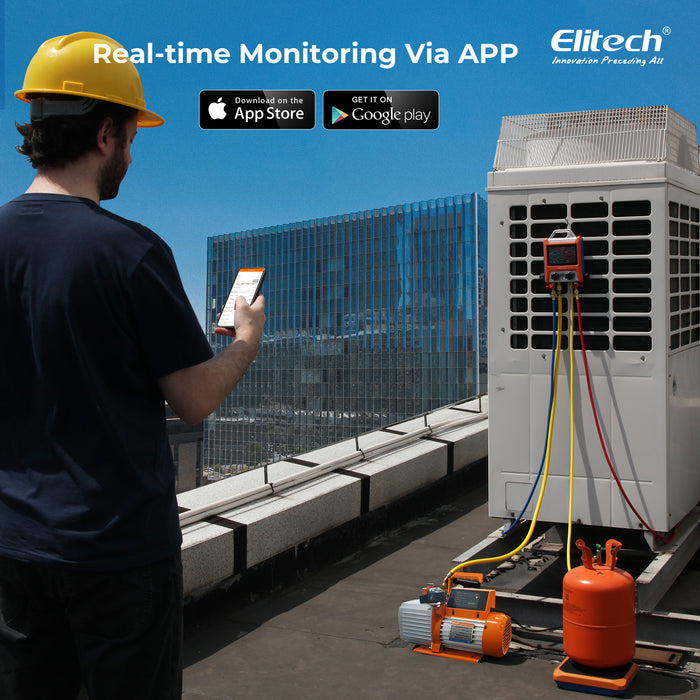

APP Monitoring*   The pump can be controlled through APP via Bluetooth connection at a distance of 30ft/10m maximum. Everything about the pump can be easily viewed and controlled via APP.
Estimated Working Hour Needed*   The pump can estimate the working hours needed to complete the task and display the remaining working time to keep users on top of vacuuming progress.
Data Logging & Report Exporting*   Each task's vacuum graph can be stored and viewed on APP. Reports can be exported in excel or PDF formats. Besides, you can also save and export screenshots of the working interface in PDF.

Elitech SVP-7 Intelligent 2-Stage Vaccum Pump Intelligent Control
Elitech SVP-7 Intelligent 2-Stage Vaccum Pump System Leakage Judgement
Elitech SVP-7 Intelligent 2-Stage Vaccum Pump Vacuum Value & Graph Display
Intelligent Control
Vacuum Value & Graph Display Vacuum Value & Graph Display
Elitech SVP-7 Intelligent 2-Stage Vaccum Pump APP Monitoring
Elitech SVP-7 Intelligent 2-Stage Vaccum Pump Estimated Working Hour Needed
Elitech SVP-7 Intelligent 2-Stage Vaccum Pump Data Logging & Report Exporting
APP Monitoring
 Estimated Working Hour Needed Data Logging & Report Exporting

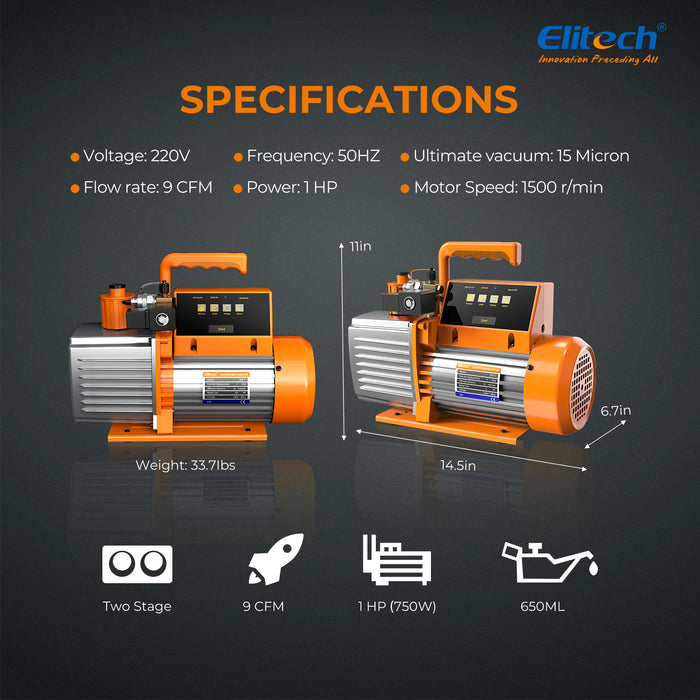

Elitech SVP-9 Vacuum Pump Specification

Model# SVP-9
Stage Two Stages
Power Supply 220V/50Hz  or 110V/60Hz
Motor AC Induction Motor
Motor Power 1 HP (750 W)
Ultimate Vacuum 15 microns
Vacuum Unit micron, kPa, Pa, mbar, inHg, Torr, mTorr
Vacuum Accuracy 1-10,000 microns ±10%
10,000 -19,000 microns ±20%
Operating Temperature 5°C~ 40°C (41°F~ 104°F)
Bluetooth transmission Distance 30 ft / 10 m
Pumping Rate 4 L/S (9 CFM)
Oil Volume 22 oz / 650 ml
Air Inlet 1/4 SAE
Tool Dimension 470*267*380 mm / 18.5*10.5*14.8 in.
Gross Weight 35.3 lbs / 15.3 kg

Elitech SVP-7 Intelligent 2-Stage Vaccum Pump Application-Elitech UK

Elitech SVP-9 Vacuum Pump Package

Vacuum Pump ×1
Bottles of Oil ×2
