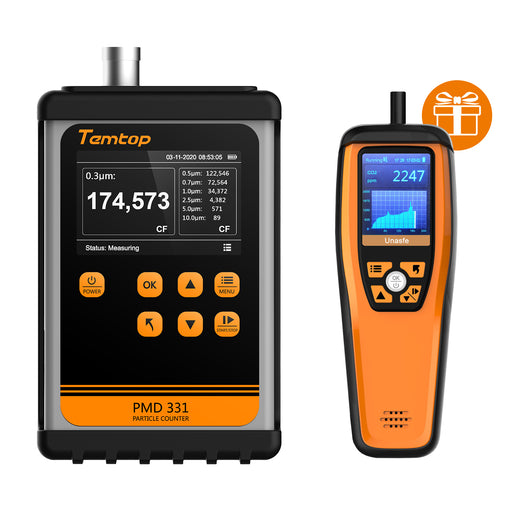

Temtop PMD 331 Aerosol Monitor Handheld Particle Counter Dust Monitor

2 sold in last 8 hours
PMD 331
£1,999.00 £1,449.00
customers are viewing this product

This Temp PMD 331 Particle Counter with a flow rate of 2.83 L/min (0.1 CFM) and simultaneously displays 7 important mass ranges (0.3μm 0.5μm 0.7μm 1μm 2.5μm 5μm 10μm) in one minute from startup. The 4" TFT LCD large display makes it easier to read the data you need. It also could export data via USB port, RS-232 communication mode, or just Bluetooth.

It is widely used in cleanroom/operating room monitoring and verification, filter testing, IAQ investigation, data center cleaning, and many more highly specialized and highly sensitive fields.



TECHNICAL SPECIFICATIONS

 Dimensions:  6.69*4.33*1.97 Inches
Working Principle:  Laser Mie-scattering Principle
Working Temperature Range: 0~50℃
Storage Temperature Range:  -20℃~60℃
Measuring Range:   0~3,000,000 particles/ft³
Accuracy: ±10%
Traffic:  2.83L/min
Laser Emitter: 50mW, 780nm
Sampling Rate:  3~60s
Data Storage: 2,000,000 points
Communication Mode: RS232/USB
Weight:  1.8 lb.
User manual:  Download
CE Certificate:  Download
Calibration Certificate: Download


KEY FEATURE:

Innovative Handheld particle counter: Measures 7 mass range simultaneous: 0.3μm 0.5μm 0.7μm 1μm 2.5μm 5μm 10μm in one minute from startup.
Easy to Read and Operate: 4" TFT LCD large display for viewing particle data, seven front-panel buttons for controlling a user-friendly, menu-driven platform for easy configuration.
Versatile Data Output Options: Stores up to 2,000,000 records and export data via USB port, RS-232 communication mode, or just Bluetooth.
Large battery capacity: Continuous 8 hours operation after a full charge.
Wide Application: Trusted in HVAC, dust-free workshop, surgical rooms, filter testing, IAQ investigation, air quality monitoring and etc.
