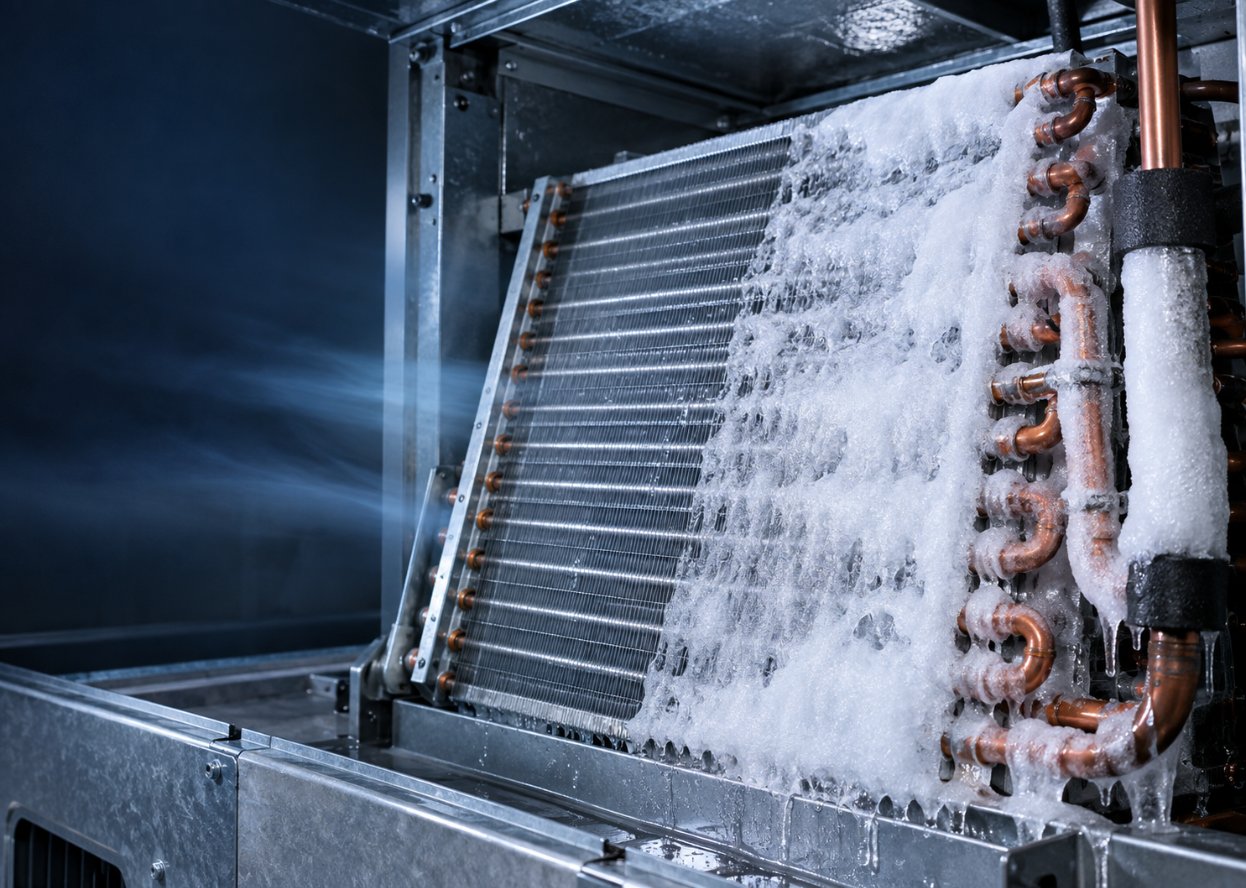

Why Does an AC Evaporator Coil Freeze? Causes and Proper Diagnosis
Ice on an air conditioner may look like a sign of powerful cooling, but it usually means the system is no longer transferring heat correctly. As ice builds across the evaporator coil, airflow decreases, cooling performance drops and the system may run longer without reaching the desired indoor temperature.
A frozen evaporator coil is a symptom rather than a complete diagnosis. Restricted airflow is a common cause, but refrigerant problems, unsuitable operating conditions and control failures can produce similar results. Finding the real cause requires looking at the HVAC system as a whole.
How the Evaporator Coil Works
The evaporator coil is the indoor heat exchanger in a typical air-conditioning system. During cooling, low-pressure refrigerant enters the coil at a temperature below the indoor air. The blower moves warm return air across the coil, allowing the refrigerant to absorb heat and evaporate. The cooled air is then distributed back into the building.
The coil also removes moisture from the air. When warm, humid air contacts its cold surface, water vapor condenses into liquid and drains away through the condensate system.
Under normal conditions, the coil is cold enough to collect condensation but not cold enough to freeze it. If airflow or refrigerant conditions cause the coil temperature to remain below the freezing point of water, that condensation can turn into ice.
Once ice begins to form, it blocks airflow between the coil fins and reduces heat transfer. This creates a continuing cycle:
Lower coil temperature → ice formation → reduced airflow → weaker heat transfer → more ice
Eventually, the air conditioner may produce very little cool air even though the compressor continues to operate.
The Main Causes of a Frozen Evaporator Coil
Restricted airflow is one of the most common causes. The evaporator needs a continuous supply of warm indoor air to maintain normal heat transfer. If too little air passes across it, the refrigerant cannot absorb enough heat and the coil temperature may fall below freezing.
Airflow can be reduced by:
- A dirty or clogged air filter;
- Blocked return or supply vents;
- A dirty evaporator coil;
- Restricted or damaged ductwork;
- An incorrect blower-speed setting;
- A failed blower motor or control component.
Refrigerant-side problems can cause similar symptoms. A refrigerant leak may reduce the system charge, lowering evaporator pressure and saturation temperature under certain operating conditions. A restricted metering device, filter-drier or refrigerant line may also starve part of the evaporator and create abnormal coil temperatures.
However, visible ice does not prove that the system is low on refrigerant. Adding refrigerant without confirming the cause can result in an incorrect charge and may hide an airflow, control or restriction problem.
Operating conditions also matter. Running cooling mode when the outdoor temperature is below the equipment’s approved range, operating with an unusually low indoor load or setting the thermostat excessively low may contribute to coil freezing. Equipment sizing, sensor location and capacity-control problems can also affect system behavior.
What Happens When the Coil Freezes?
A frozen evaporator cannot absorb indoor heat effectively. Common signs include weak airflow, insufficient cooling, ice on the suction line, continuous operation, water around the indoor unit and unusually high energy consumption.
As the ice spreads, it may:
- Restrict airflow further;
- Reduce cooling and humidity control;
- Increase system operating time;
- Place additional stress on the blower;
- Cause water leakage when the ice melts;
- Contribute to unstable refrigerant conditions;
- Place the compressor at risk under severe fault conditions.
Continuing to operate the system usually allows more ice to form. If visible ice is found, cooling should generally be stopped and the coil allowed to thaw safely according to the manufacturer’s instructions.
Ice should never be broken away with a sharp object. Evaporator fins and refrigerant tubing are easily damaged, and puncturing the coil can create a refrigerant leak.
Why Adding Refrigerant Is Not the First Answer
A frozen AC coil is sometimes treated as automatic evidence of low refrigerant charge. This is an unreliable shortcut because several faults can create similar pressure and temperature conditions.
For example, restricted airflow reduces the amount of heat reaching the evaporator. This can lower suction pressure even when the system contains the correct amount of refrigerant. Adding refrigerant in that situation will not restore airflow and may leave the system overcharged after the airflow problem is corrected.
Before changing the charge, technicians should confirm:
- The coil has completely thawed;
- The filter and evaporator are clean;
- The blower is operating correctly;
- Indoor airflow is appropriate;
- Indoor and outdoor conditions are suitable for testing;
- The correct refrigerant is being used;
- Pressure and temperature measurements are consistent;
- The manufacturer’s charging method is being followed.
If refrigerant loss is suspected, the system should be checked for leaks. Refrigerant is not normally consumed during operation in a properly sealed system, so a low charge indicates that the cause should be investigated.
A Clear Diagnostic Approach
Reliable diagnosis should evaluate the air side and refrigerant side together.
First, allow the coil to thaw. Pressure, temperature and airflow readings taken while the coil is blocked by ice will not represent normal system operation.
Next, inspect the air filter, blower, evaporator surface, vents and accessible ductwork. Confirm that the blower setting matches the equipment requirements and that air can move freely through the system.
The operating conditions should then be recorded, including indoor temperature, humidity, outdoor temperature, thermostat demand and equipment stage. These factors influence the readings measured during diagnosis.
After airflow has been confirmed, technicians can evaluate low-side and high-side pressures, refrigerant-line temperatures, temperature change across the indoor unit and other manufacturer-specified values. Superheat and subcooling may provide useful information, but the correct procedure depends on the system design and metering device.
If the measurements indicate possible refrigerant loss, an appropriate leak-detection method should be used. If a restriction is suspected, temperature and pressure measurements can help identify where the abnormal condition occurs.
After the underlying problem has been repaired, the system should be operated again under suitable conditions. Airflow, pressure, temperature and control behavior should be verified and recorded to confirm that normal heat transfer has been restored.
Preventing Evaporator Coil Freezing
Regular maintenance can reduce the likelihood of coil icing. Filters should be inspected and serviced according to their condition, system usage and manufacturer recommendations. Supply and return openings should remain unobstructed, while the blower, evaporator coil and condensate system should be kept in suitable operating condition.
Professional maintenance should also consider airflow, temperature, electrical operation and refrigerant conditions as connected parts of the same system. Checking only one reading may miss the condition that is actually reducing performance.
Final Thoughts
An AC evaporator coil freezes when the balance between airflow, refrigerant behavior and system load is disrupted. Restricted airflow is a frequent cause, but refrigerant leaks, restrictions, control problems and unsuitable operating conditions may produce similar symptoms.
The ice may be visible, but the real problem is often located elsewhere in the HVAC system. Effective troubleshooting begins by thawing the coil, verifying airflow, measuring system conditions and identifying the reason normal heat transfer was lost.
A frozen coil should therefore be treated as evidence—not as the final diagnosis.
