Elitech RC-5+ Temperature Data Logger, PDF USB Temperature Data Recorder, 32000 Points, with Calibration Certified
- Elitech RC-5+ USB temperature data logger features a plug-and-play USB port interface and allows for faster access to data collected in any cold chain management process. This could be used in pharmaceuticals, food, life science, cooler boxes, medical cabinets, fresh food cabinets, freezer or laboratories. Different from the normal USB temperature data logger, the RC-5+ temperature data logger has two types of alarms--single and cumulative alarm. Its robust and compact design satisfies the dynamic demands in any sensitive storage and transportation system. It records real time temperature that is stored in non-volatile memory for access via the USB port.

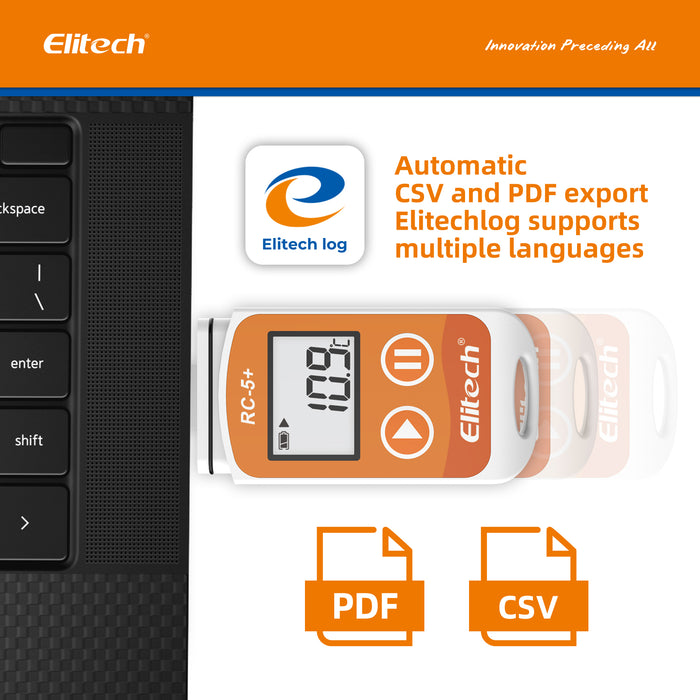

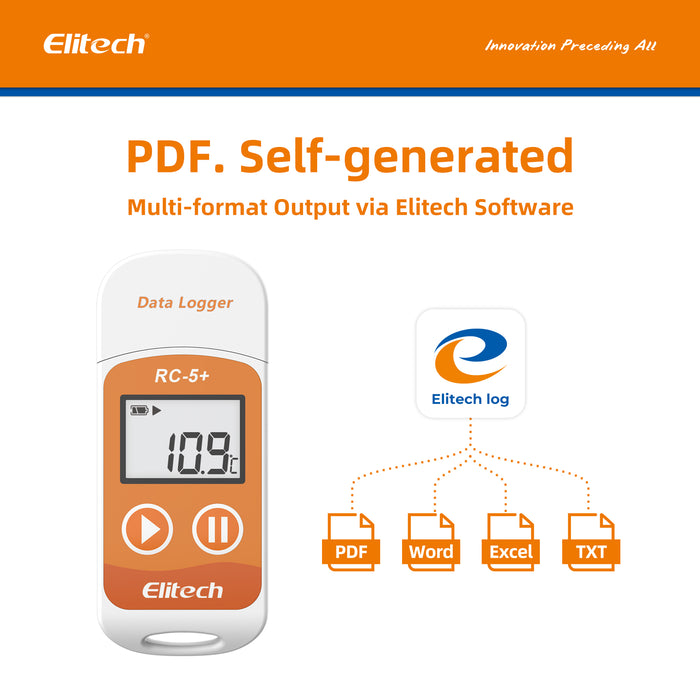

- Auto-generated and encrypted PDF report: Data could be queried, saved, printed, and exported in word/excel/txt /PDF format
- Wide measuring range: High accuracy, -30 ~ +70 °c with an internal sensor and large record capacity of 32000 points. ℃ or ℉ optional
- Easy to use: Long battery life & 10s ~ 24hour adjustable record intervals; over Temperature Alarm & Upper/Lower Limits
- Mac/Win supported: Free software supporting windows & macos systems; Data exchange with computer by USB without cable
- Multi-boot function: The reusable temperature logger, reboot by pressing button or operating on software
-
Features
Multi-use Data Logger
- Newly upgraded reusable temperature logger for RC-5.

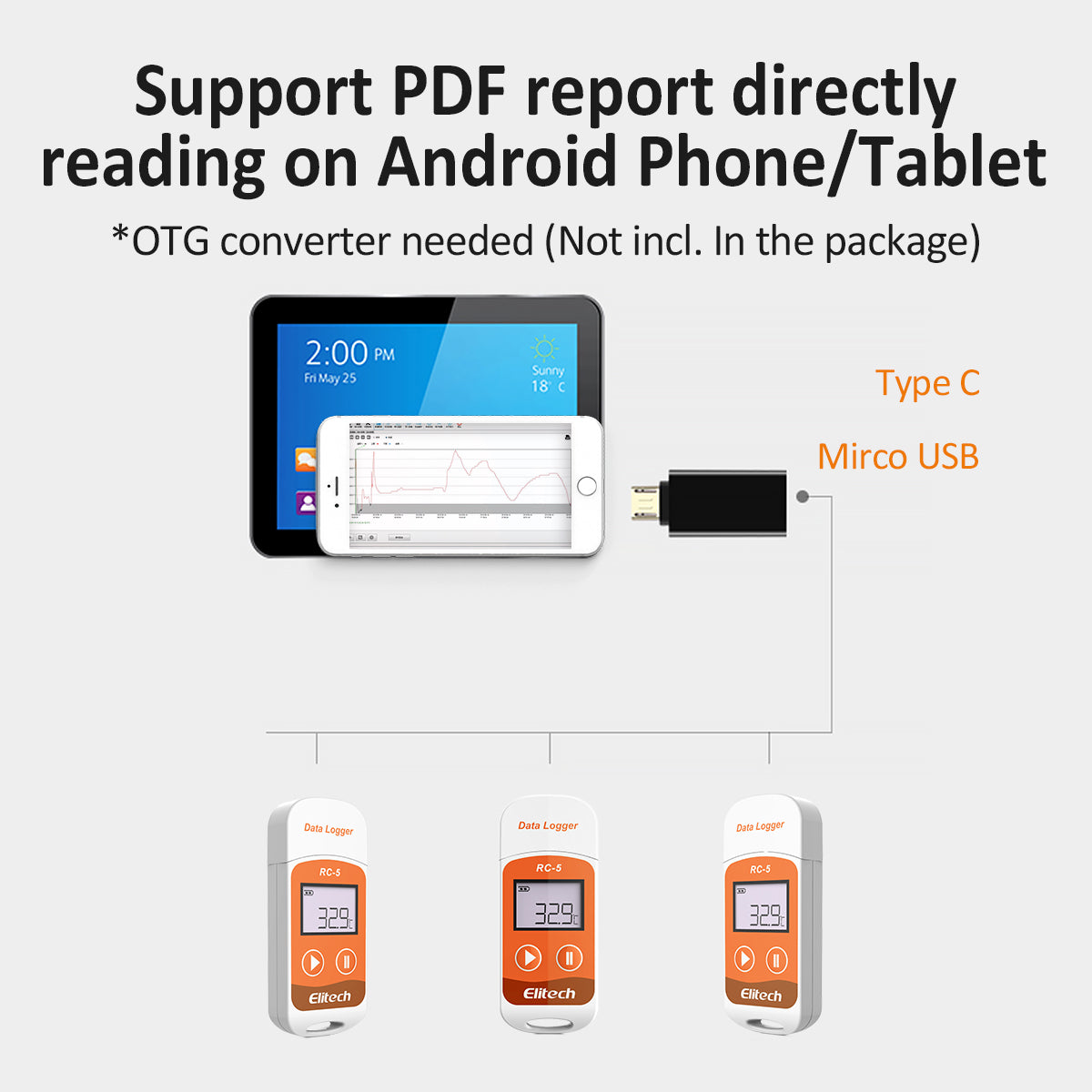

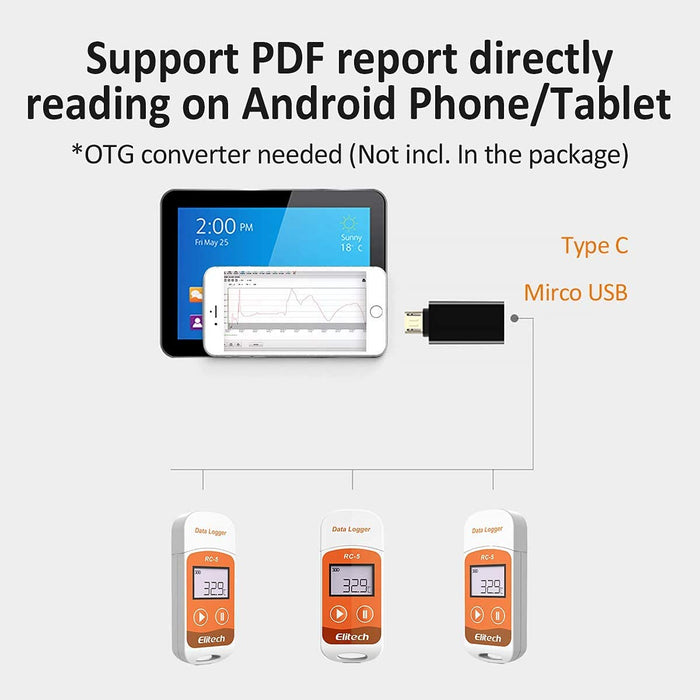

- USB disk design, no cable or driver needed,plug and read(Android Phone OTG supported)
- Further setup and management can be done via elitec log software (MAC OS and Windows support)
Wide Temperature Range & Large Capacity

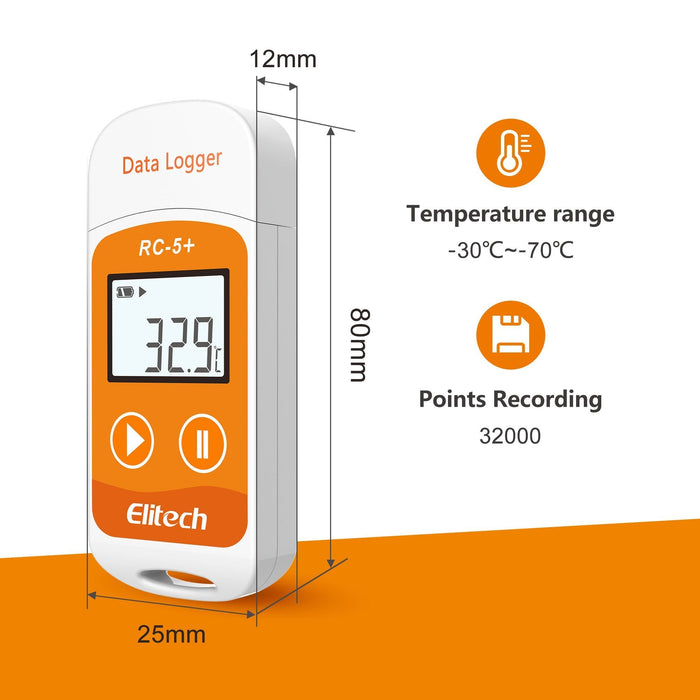

- Temperature range: -30°C ~ 70°C
- Accuracy: ±0.5°C

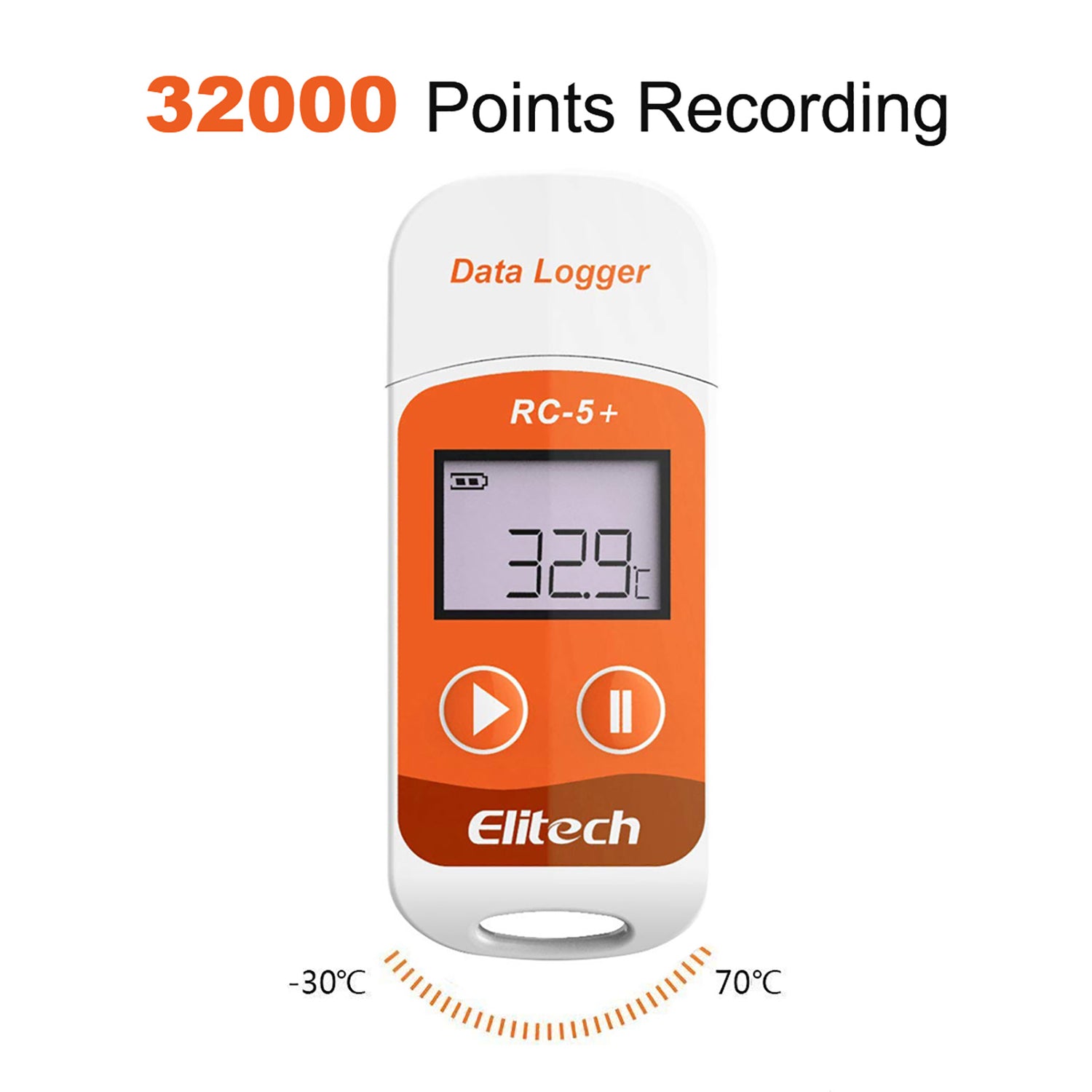

- Large recording capacity: 32,000 points
- Fast Response time

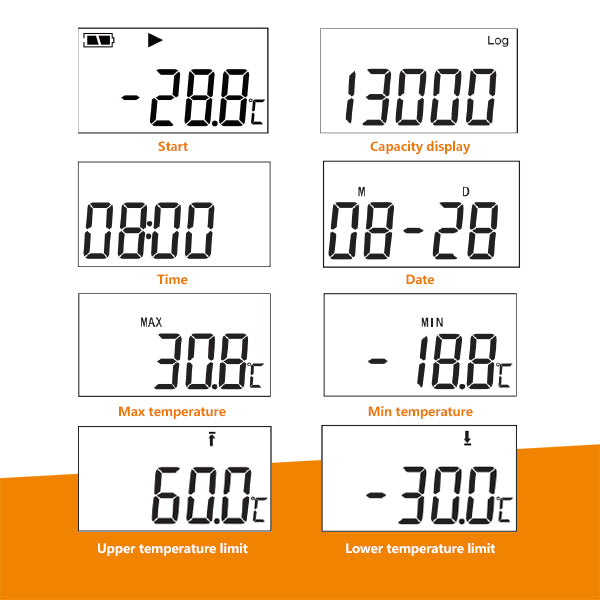

LCD Display
- Powerful LCD indication with key statistic information, convenient to check your data at any time
- Over temperature alarm & upper/lower limits can be set
- MAX/MIN values available
- Record interval: 10s~24h adjustable

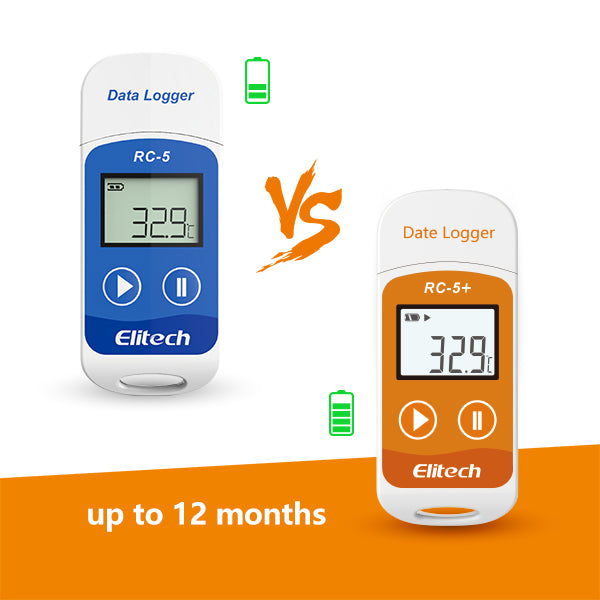

VS. RC-5
Upgraded from RC-5, RC-5+ improved as below:
1. Automatic Generate PDF Report
The new-added function allows data logger to generate PDF report automatically.
2. Password Protection
Optional password protection for Report will keep your data safe
3. Double the Battery Life
Comparing with RC-5 6 months battery life.
RC-5+ is with a battery life up to 12 months (15℃~23℃/45%RH~75%RH)
4. Button Restart for Repeating Record
By holding the left button to restart the data logger, it is convenient for multi-use purpose and the stored data will be cleared simultaneously.
Package Included
1 x Elitech RC-5+ Data Logger; 1 x CR2032 battery; 1 x Instruction

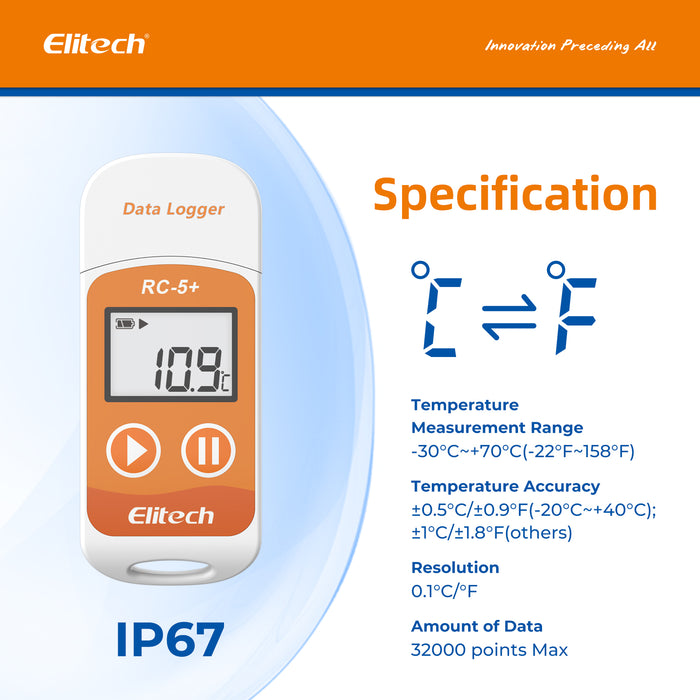

Specifications
- Sensor: Internal NTC thermal resistor, no external sensor supported
- Communication interface: USB

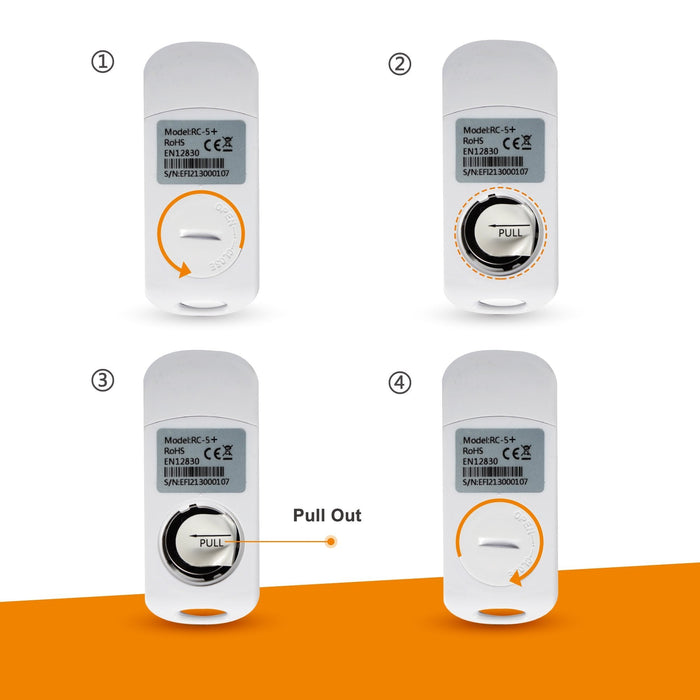

- Power supply: CR2032 battery
- Waterproof: IP67
- CE certificate
- Multiple use: data can be removed and start a new round by our software
- Temperature unit: ℃ or ℉ optional
- Record capacity: 32000 points (MAX)

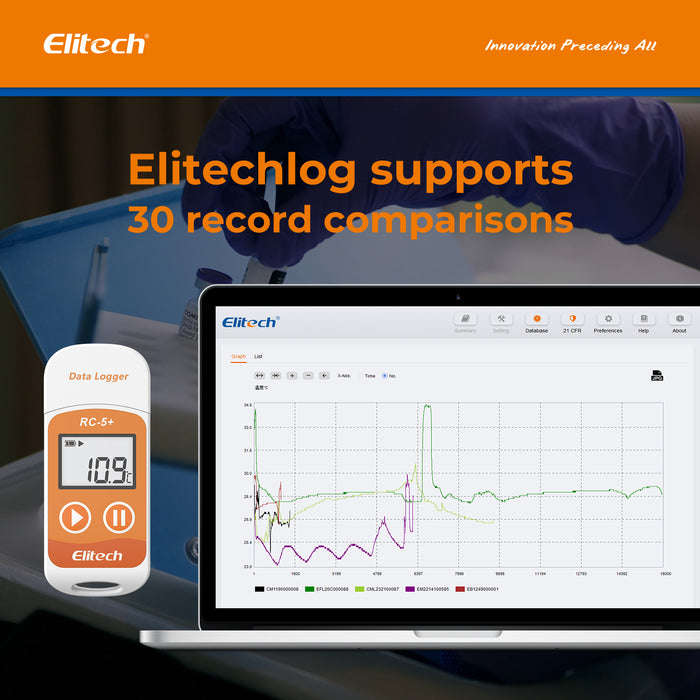

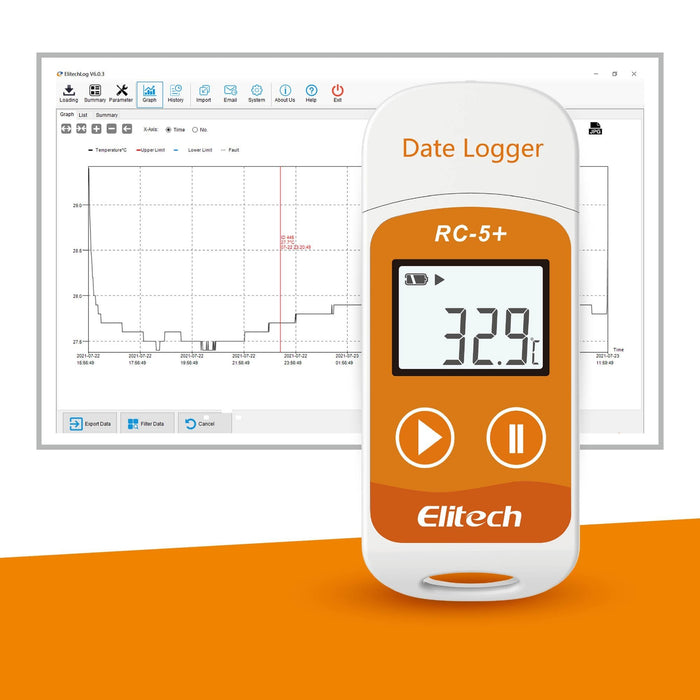

Free Elitechlog Software for Windows&macOS

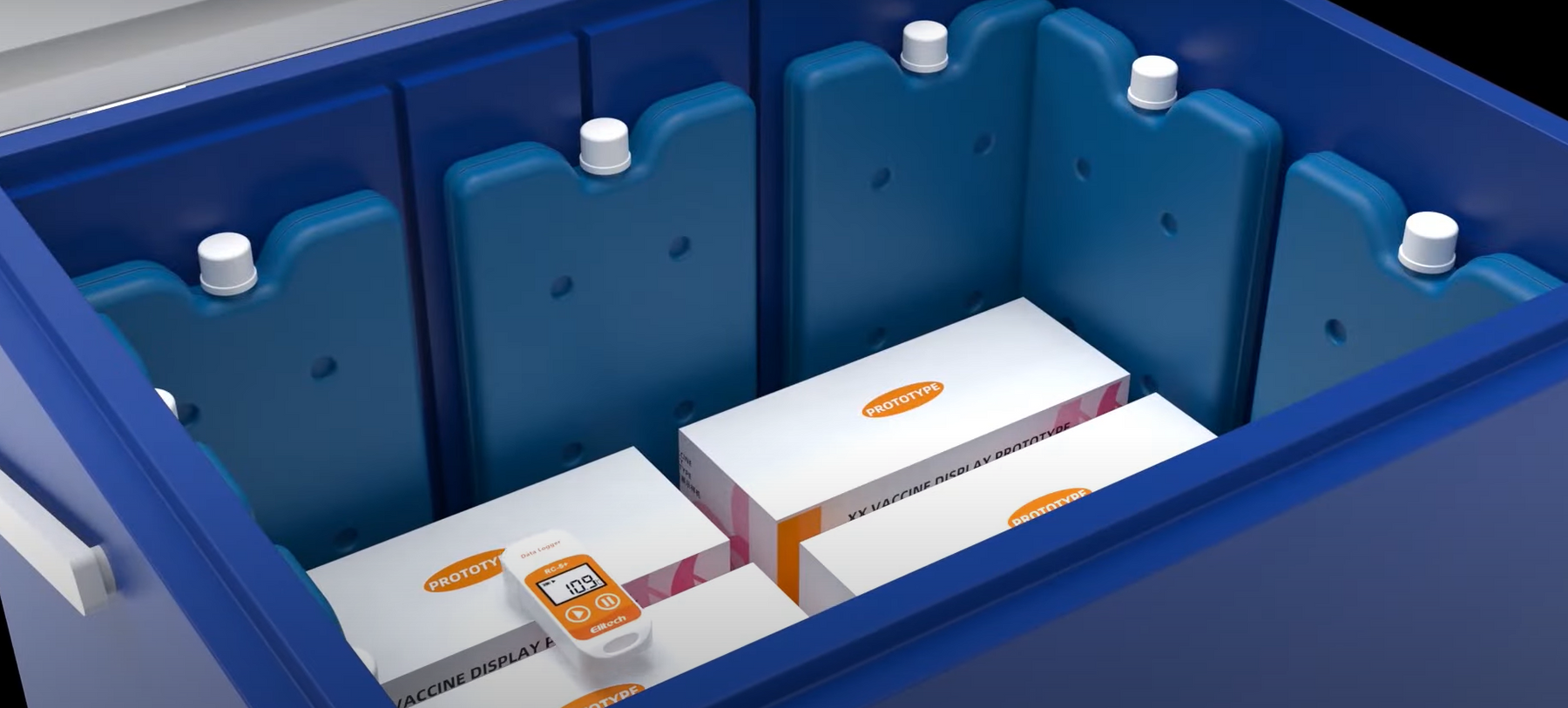

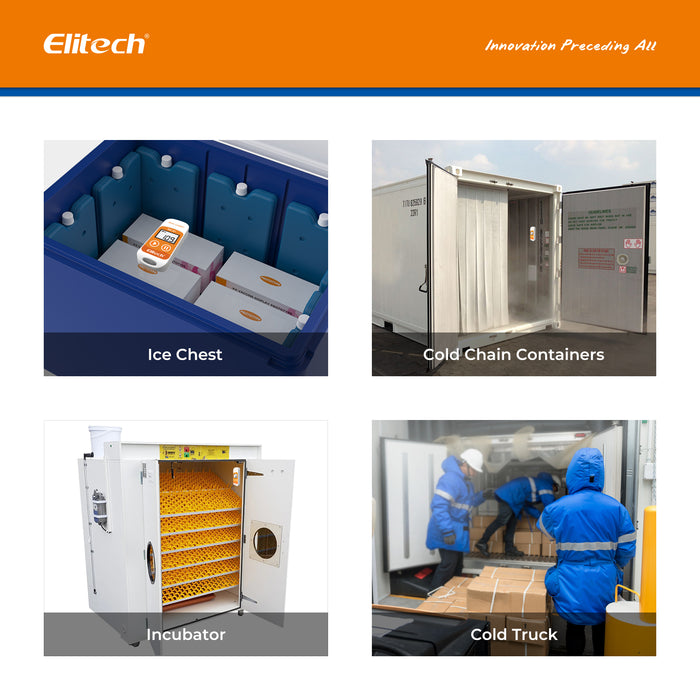

Transportation
Temperature sensitive products such as foods, pharmaceuticals, and some chemicals are often monitored during shipment and logistics operations. Exposure to temperatures outside of an acceptable range, for a critical time period, can degrade the product or shorten shelf life.
Clean Rooms/Laboratories
When specific laboratory or room climates are required, this data logger can reliably track temperature measurements at a variety of data sampling rates. The convenient plug-and-play design allows you to upload raw data, graph it, and share reports quickly.
Factories
Climate-controlled food processing or woodworking facilities require specific temperature conditions for inventory. A data logger helps recognize trends in environmental conditions, helping to troubleshooting HVAC problems before they get worse.
Meteorological Research
Measure, store, graph and compare meteorological data using a high-quality data logger that captures temperature. Track trends and changes in the weather using the detailed-oriented software program included with the RC-5+.
Elitech RC-5+ Temperature Data Logger User Manual Muti-language
