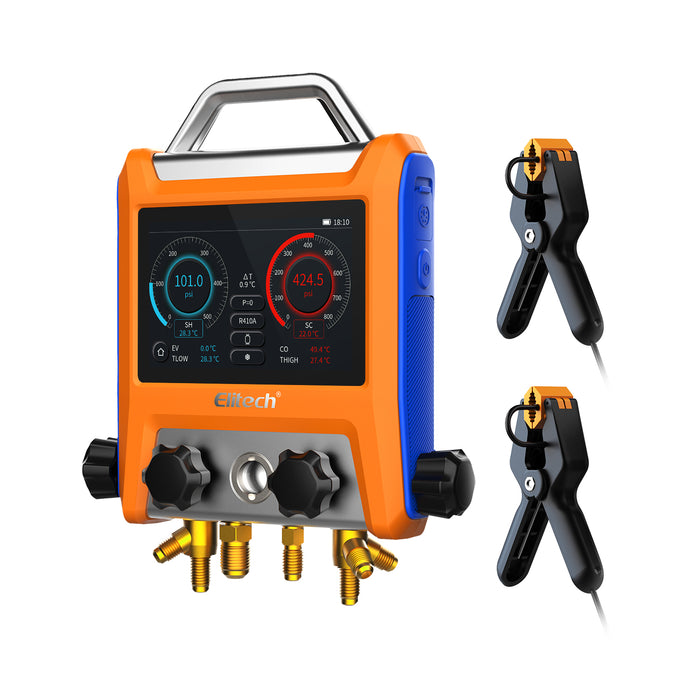

Elitech EMG-40V Intelligent 4 Valves Digital Refrigeration Heat Pump Manifold with 5” Smart Touch Screen

by Elitech
Save 33% Save 33%
£599.00
£599.00 - £599.00
£599.00
£399.99
£399.99 - £399.99
£399.99
SKU EMG-40V
stock in: UK warehouse

Free Shipping in the UK & EU

Fast Worldwide Delivery

Request a wholesale quote

Elitech EMG-40V, an intelligent new digital manifold gauge, help you measure fast and operate easily via large graphic and smartphone. With its touch screen, pressure, vacuum and temperature values will be at a glance in your hand. It is suitable for daily inspection and maintenance of the HVAC/R system.

Feature

Feature

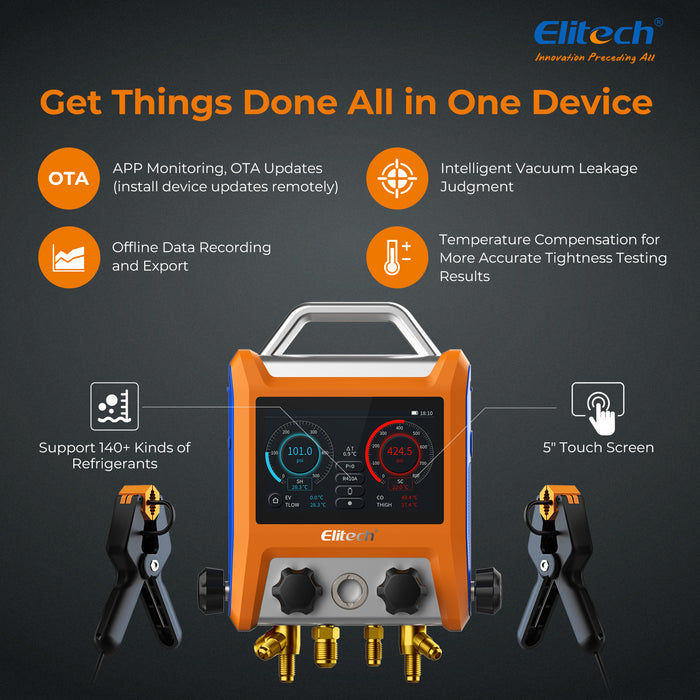

  • Simple & easy operation with 5” smart touch screen, clear data, and graph display.
  • Connect App by Bluetooth, data monitoring and analysis in real-time. Read and export data easily through USB. Record points: 100,000 points
  • Pressure, vacuum and temperature curve display, analysis intuitive and efficient
  • Switch between heat and cooling mode without changing the refrigerant hoses. Automatic measurement of superheating and subcooling.
  • Monitor system vacuum with leak detection, built-in temperature compensation to accurately monitor the pressure holding process.

Pressure(High-Pressure Port & Low-Pressure Port )

  • Measuring Range:-14.5~800psi/-1.0~56.2kg/cm2/-1.0~55.2bar/-0.1~5.5MPa
  • Accuracy:   0.5%FS
  • Resolution:  0.1psi/0.1kg/cm2/0.1bar/0.01MPa
  • Pressure unit: psi, inHg, kg/cm2, cmHg, bar, kPa, MPa
  • Data Sampling Frequency: 0.5S
  • Overload: 1000psi/70kg/cm2/69bar/6.8MPa

Temperature Clamp (High-Pressure Port & Low-Pressure Port )

  • Temperature Range: -40℉-300℉/ -40℃-150℃
  • Accuracy:  ±0.1℃/±0.18℉
  • Resolution: 0.1℉/℃
  • Temperature Unit: ℉, ℃

Vacuum

  • Range: 0-19000 microns
  • Accuracy: 0-10000microns, ±10% of Reading / ±10 microns; 10000-19000microns, ±20% of Reading
  • Vacuum Unit: inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa
  • Resolution: 0-400, 1 microns; 400-3000, 10 microns; 3000-10000, 100 microns; 10000-19000, 250 microns;
  • Interface: 1/4SAE and 1/4SAET

Refrigerant List

R113 R114 R115 R116 R12 R123 R1233ZD R1234ZE R1234YF R124 R125 R13 R134a R14 R141B R142B R143A R152A R170 R22 R23 R236FA R245FA R290 R32 R401A R401B R401C R402A R402B R403B R404A R406A R407A R407B R407C R407D R407F R408A R409A R410A R410B R412A R413A R414A R414B R416A R417A R417C R420A R421A R421B R422A R422B R422C R422D R424A R426A R427A R428A R429A R434A R437A R438A R441A R443A R448A R449A R450A R452A R452B R453A R454A R454B R455A R458A R500 R502 R503 R507A R508A R508B R514A R600 R600a R601a R718 R744

Packing list

Packing list

  • 1 x Vacuum transmitter(T-joint)
  • 2 x Temperature clamp
  • 1 x Bent joint
  • 3 x Refrigerant hose
  • 1 x Universal power adapter
  • 1 x USB-C cable
  • 1 x User Manual (Download)
  • 1 x Portable durable case
